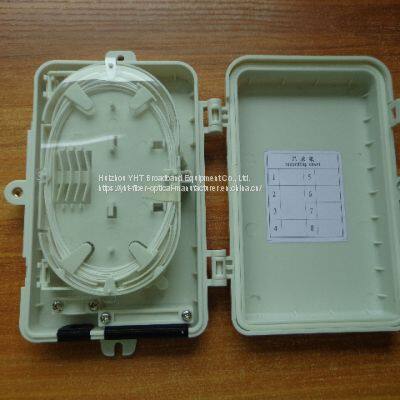

Fiber Optical Cassette Outdoor Fiber Optic Termination Box SC FC ST LC Adapter
Product Description
Description:
OTB-C04-A is used in the end termination of residential building and villas, to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles.
Features:
Outdoor wall mounted, IP65.
Max capacity 4 fibers
Can load 1pc PLC 1:4 steel tube type splitter
Cable port diameter 7-10mm
Suitable for SC, FC, LC duplex ... adapter
Specification:
Model
Dimension
W*H*D (mm)
Material
Adapter port
Splicing capacity
Cable port
Remark
OTB-C04-A
141.6x211.6x39.8
ABS plastic
4 pcs
4 ~ 8 fibers
1 in & 4 output ports
Outdoor wall mounted;
Pole mounted optional

Key AttributesIndustry-specific attributesType
Fiber Terminal Box
Other attributesModel Number
OTB-C04-A
Place of Origin
Guangdong, China
Brand Name
CSYHT
Use
fttx
Warranty Time
1 year
Network
None
Name
Outdoor Fiber Optic Termination Box
Application
FTTH FTTB FTTX Network
Color
White
Product name
Gepon Onu
Dimension
212mm*142mm*40mm
Material
ABS
Certification
CE RoHS FCC
Fiber Type
SM MM
Package
Carton Box
Keywords
OTB
Packaging and DeliveryPackaging Details
OTB Optical Terminal Box
Carton Box
Port
Shenzhen, China
Supply Ability
500 Unit/Units per Day
Lead time
Quantity (units)1 - 200> 200
Lead time (days)15To be negotiated

CustomizationCustomized logo
Min. order: 200
Customized packaging
Min. order: 200
Graphic customization
Min. order: 200
For more customization details, message or email supplier!
