Automatic Filament Winding Machine for Fiberglass Flange, Elbow, Reducer, Tee etc.

Product Description

(1) Technical parameters

S/N	Main components	Technical parameter	Remarks
1	Diameter range of fabricated products	DN300-DN600
2	Center height of winding machine	1500MM
3	Spindle power	4KW
4	Speed of spindle	30rpm
5	Swing arm frequency	MAX19rpm
6	Swing arm control mode	hydraulic pressure
7	Servo motor power	without
8	Transverse stroke of swing arm	600mm
9	Longitudinal stroke of swing arm	without
10	Swing arm movement control mode	hydraulic pressure
11	Moving stroke of driven bearing seat	without
12	Telescopic stroke of driven shaft	600mm
13	Swing arm moving motor power	without
14	Swing arm control mode	hydraulic pressure
15	Rated working pressure of hydraulic system	14Mpa
16	Equipment power	7KW

Application and characteristics Application: It is applied to the manufacture of fittings such as tees and elbows for FRP pipes.
Features: simple mechanical structure, convenient maintenance, swing arm controlled by hydraulic system, large working torque and adjustable speed, easy for operators to use.

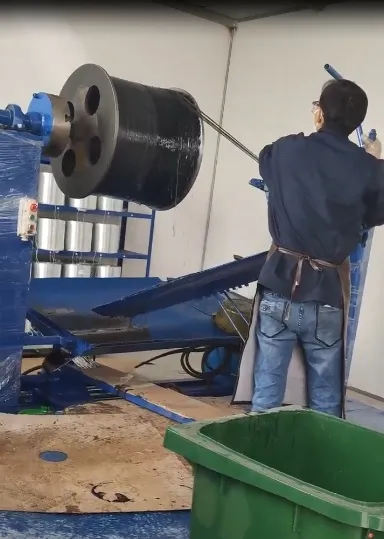

Main structure principleThe machine head is driven by the motor reducer, the three-jaw chuck plates clamps the fitting mold, the tailstock passively supports the mold, and the product is produced through the swing of the swing arm.
Main functionsManufacture of fittings such as tee and elbow used for FRP pipes.
Equipment configuration list

S/N	Description	Main parts	Technical parameter	Brand
1	Control system	Frequency changer/inverter	4KW	Powtran
		Electric box	600X800X300	Fangchen
		Contactor	CJ20	CHINT
2	Transmission system	Reducer machine	XLD5-43-4KW	Xieshun
		Ordinary motor	Y132M-4-B5-4KW	Mengniu
		Chain wheel	N/A
3	Hydraulic pressure system	Hydraulic pump station	Volume 200L	Fangchen
		Hydraulic oil pump	CB-Fa10C-FL	Changsheng
		Hydraulic reversing valve	4WE6E50/W220-50Z4	Beiye wantong
4	Guide rails (bearings, etc.)	Bearing	60220	HRB
		Linear guide	SBR35	Shangyin
5	Machine Frame	Base	12# channel steel	Fangchen
		Baseboard	4X	Fangchen
		Principal axis	45#	Fangchen
		Flange plate	Q235	Fangchen
		Resin tank	stainless steel	Fangchen
		Resin tank frame	stainless steel	Fangchen
		Roving rack	40X40 square tube	Fangchen
		Left and right brackets	300X200 square tube	Fangchen
6	Protective cover	Piano-shaped shield	Customized	Dongfang

---
