| US$8,500.00-25,500.00 | 1 Piece (MOQ) |
| Model | NM-483 (Asynchronous Type) |
| X-Y-Z axis working area | 1,300 x 2,500 x 200mm |
| Machine size | 3100 x 2200 x 1750mm |
| Resolutions | 0.025mm |
| X-Y movement | Rack and pinion, gear drive/Taiwan |
| Z movement | Ball screw drive |
| Guide | Linear 25 square/Taiwan |
| Max. speed | 35,000mm/min |
| Max. cutting speed | 25,000mm/min |

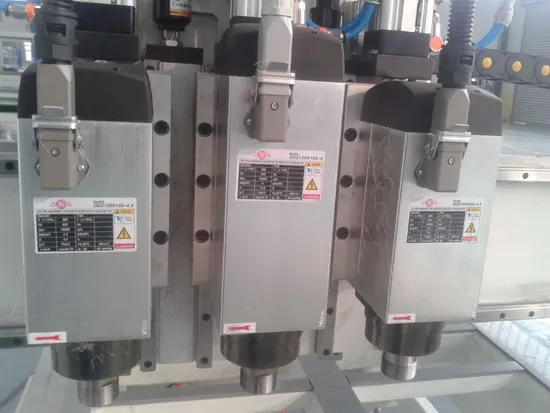

| Spindle 1-3 | 6kw (Chinese Fan cooling) |
| Spindle 1-3 | 18,000rpm |
| Inverter power | 7.5kw |
| Drive motors | stepper / servo |
| Working voltage | AC380V/50-60Hz, 3-phase |
| Command code | G code |
| Computer interface | USB 2.2 |
| Collet | ER25- 3.175mm, 6mm, 12.7mm |
| Software | Type3 Software/France |
| Controls | DSP A15 For Two Spindle |
| Packing dimensions | 3220 x 2280 x 1870mm,1300 kgs |
| Standard equipment included | 1. Auto tool surface sensor 2. Manual oil lubrication system 3. Dust hood 4. T-slot table with mechanical clamps |
