| US$150,000.00-230,000.00 | 1 Piece (MOQ) |

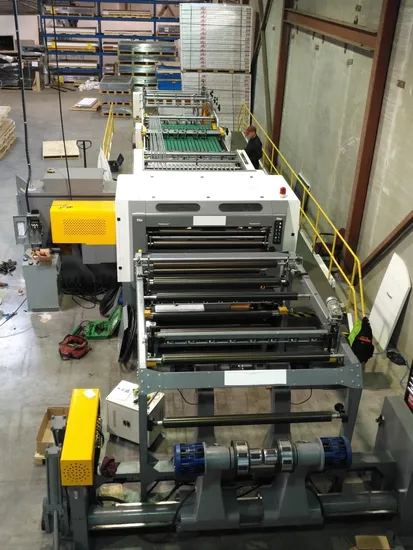

| Cutting Unit The double KNIFE cutting unit has a synchronic rotary cutting knife like scissors on the material to make a smooth and accurate cutting for paper from 150gsm and up to 1000gsm.The knife roller is using the most powerful driver from UK CT. Precision rotary sheeter groove is processed by imported advance processing center with high accuracy and stability, High quality gear box ,using no clearance design gear. which guarantees the stability of the tool body during high-speed operation, completely solve the problem of scratches and light spots, after cutting the edge is neat and smooth, clean cut. | |
| Double Arm Unwind stand with web tension controls and pneumatic brake units. Adopt Italian RE control system and pneumatic components are adopted to guarantee the stable operation of the brake control system and the accuracy of every aerodynamic action. | |
| Four sets of pneumatic slitting knife ensure stable and clean slitting . High rigid tool post article can be applied to 400cut/min speed environment, improve the production efficiency and ensure the material quality stability. | |
| Electric control partAdopt German imports of Siemens PLC and UK OF CT servo drive control system,make the operation more convenient, automation,cutting length, number and the total number of finished products, etc.,can be directly in touch screen input.High efficiency and energy saving of high power CT servo drive rotary knife shaft,and cooperate with the energy storage tank,effectively reduce electricity consumption,improve the efficiency, reduce the production cost. | |
| Transportation parts Patent device-A precision structure can adjust the synchronous deceleration wheel, easy to operate, it is effective to protect surface of paper, so there will be no scratching on surface, and also will not have the facula whenever speed is high or low . | |
| Automatic splicer (optional)High performance automatic splicer is twin-head automatic paper machine.The control system is from Taiwan with the features of long service life,high flexibility, and automatic splicer as soon as theimperfect broken paper is sensed,easily for operation for 100 to 500 GSM papers. | |
| Slitting & trimming knives automatic change (optional)The slitting & trimming knives are rapidly automatically changedby through a pair of smart and precision mechanical hands,which can greatly improve your production efficiencyand its production performance on the frequent size changes of paper.According to different cutting requirements,It can be coordinate with different knife type to form adifferent cutting solutions for different cutting requirements,such as electronic knife, automatic type,manual type, Siamese type, press-cutting type, etc. | |
| Automatic logistics system:Tray chain conveyor mainly adopts five row straight plate chain transport,motor driven design, its function is to achieve linear material transport,ultra-low transport. A series of pallet chain conveyors combined in series witheach other have realized the long or short distance linear conveying ofmaterials according to the region and process design.Modular design, high degree of standardization,flexible process arrangement and adjustment,the equipment is basically maintenance-free. |
| Model | HSC-1500SS/1700SS/1900SS |
| Type of cutting | Twin knife, Top blade and bottom blade rotary cutting |
| Paper weight range | 150-1000 GSM |
| Reel stand load capacity: | 2.5T (option 3T-4T) |
| Reel diameter | Max 1800mm (71") |
| Cutting Width | Max 1500/1700/1900mm (66.9") |
| Cut off length range | Min.400-Max.1650 mm |
| Cutting accuracy | ±0.15mm |
| Max. Speed of cutting | 400cuts/min |
| Max. Cutting speed | 300m/min |
| Delivery height | 1700mm(incl.pallet) |
| Voltage | AC380V/220Vx50Hz 3ph |
| Total power | 96kw |
| Output | The real output depends on the material, and the weight of the paper, and right operate process |
| ZHEJIANG HAOSHENG PRINTING MACHINERY CO.,LTD. HOUSENG is a leading company in china to produce sell sheet cutting machine /reel to sheet paper ,HOUSENG on extensive experience and fast develop speed in this field. Start from 2001, high performance models have evolved thanks to the commitment and know-how of our employees, intensive research and development, and the steady exchange with our customers on their needs and ideas . In the light of such policies as adapting to market demands ,basing on science and technology and seeking market share through quality ,HOUSENG aims to reduce cost and market competition ,provide better services for customer at home and abroad, and enable customers to obtain greater benefits. |
