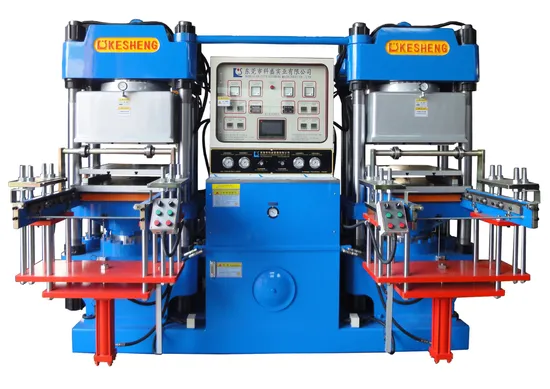

Made in China Good Quality Rubber Injection Molding Machine

Product Description

The advantages of liquid injection machine
1.Stable quality
The raw materials are extracted automatically, and then injected into the mold accurately through the screw according to 1:1 proportional measurement.Thus overcome the unstable quality problem which caused by human production
2.High efficiency
No need to refine the raw materials, no need harmonize colors, no need to weight material and put material, all these steps are control by machine PLC, automatically feeding and calculate materials, high repeatability.Double skateboard coherent operation to open the mold, almost no press time, high efficiency, stable quality.One set Injection machine's production is equivalent to two sets Press molding machines.
3.Save manpower
It will be needed one operator only (no matter man or woman), no need technical experience, as long as the products can be blow out from the mold.Require one worker for one shift, two workers for two shift, no need workers to refine the raw materials.Compare with the Press molding machine, the Injection molding machine can save 3 or more workers.
4.Save materials
Thin and small production burr, and easy for cleaning, the flow path is small and shallow, can save materials.
5.Save power
Three sets heating tubes, one set motor, specially use servo motor for the Injection molding machine, save power.
6.Applied to all kinds of rubber products
Machine main feature:
1.Direct pressure type hydraulic device ensure the mould operation accurate.
2. Double lower die and sliding fast device are suitable for high efficiency production.
3. LSR special pneumatic self-enclosed water-cooled closed-nozzle to make sure never leak materials.
4. To do special design for the injection oil system according to LSR characteristic to make sure feeding and calculate materials more accurate.
Specification

	Item		Unit	KSLS-850			KSLS-1200			KSLX-1500
Injection device	Screw Dia.		mm	¢26	¢28	¢30	¢30	¢35	¢40	¢40	¢45	¢50
	Ideal Injection volume		cm3	74	86	98	98	134	175	251	317	392
	Max. Injection pressure		Mpa	252	217	189	265	194	149	168	132	107
	Inject stroke		mm	140			140			200
	Screw rotating speed		r.p.m	0~240			0~240			0~240
	Nozzle protrusion plate size		mm	≥60			≥60			≥60
Clamping Device	Clamping force		KN	861			1125			1504
	Clamping stroke		mm	250			300			300
	Min. Mould thickness		mm	250			250			260
	Max. Daylight		mm	650			650			610
	Space between bars		mm	390*660			470*660			610*650
	Max. Mould size		mm	450*550			550*600			550*750
	Ejector stroke		mm	145			175			245
	Ejector force		KN	33.2			46.4			53.8
Others	System pressure		Mpa/cm2	14			14			14
	Oil tank capacity		L	365			450			433
	Heating power		KW	12			12			18
	Motor power		KW	11			11			18.5
	Size	L*W	mm	2200*2100			2700*2200			3900*1150
		H	mm	2800/3590			3300/4200			3200/4100
	Gross weight		T	5.5			6.5			8

Any inquiry please feel free to contact with us, thank you for your attantion!

phone number:+86 13760835714

---
