Customizable High-Quality Welded Mesh for Building Protection Materials Welded Wire Mesh

Product Description

Product Description


Products Description:
Best Quality Galvanized/PVC Coated Construction Filter Aviary Welded Mesh Direct FactoryWelded wire mesh have smooth mesh surface, well-proportioned meshes, strong welded points and bright luster, the mesh does not come loose even if cut in parts or being exerted force on parts, Compared with general iron wire, welded mesh are better in respects of anti-corrosive and anti-rust.

Specification of Welded Wire Mesh
Hole Size		Wire Diameter	Wide	Electric galvanized before welded, Electric galvanized after welded, Hot dipped galvanized before welded, Hot dipped galvanized after welded, PVC coated, Stainless steel wire (SUS304,SUS316,SUS316L);
In inch	In metric unit
1/4''X1/4''	6.4mmX6.4mm	BWG24-22	0.3-2.5m
1/4''X1/2''	6.4mmX12.7mm	BWG24-22	0.3-2.5m
1/4''X1''	6.4mmX25.4mm	BWG24-22	0.3-2.5m
1/3''X1/3''	8.5mmX8.5mm	BWG24-18	0.3-2.5m
3/8''X3/8''	9.5mmX9.5mm	BWG22-19	0.3-2.5m
1/2''X1/2''	12.7mmX12.7mm	BWG23-16	0.3-2.5m
3/4''X3/4''	19.1mmX19.1mm	BWG21-16	0.3-2.5m
1/2''X1''	12.7mmX25.4mm	BWG21-16	0.3-2.5m
1-1/2''X1-1/2''	38mmX38mm	BWG19-14	0.3-2.5m
1''X1''	25.4mmX25.4mm	BWG19-14	0.3-2.5m
2''X2''	50.8mmX50.8mm	BWG15-12	0.3-2.5m
4''X4''	101.6mmX101.6mm	BWG15-12	0.3-2.5m
Note: Special specification can be made according to customer's requires.

The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.

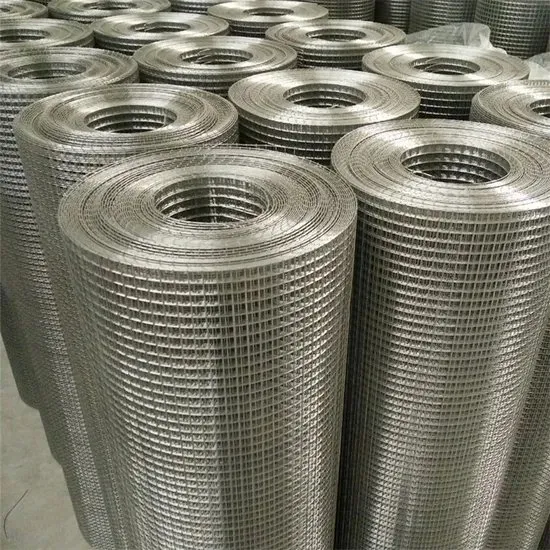

Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.
Welded wire mesh fencing
Welded wire mesh backets
• Welded wire mesh architectural grilles
• Welded wire mesh grates
• Welded wire mesh racks
• Welded wire mesh aggregate screening
• Welded wire mesh test sieve cloth
• Welded wire mesh water screens
• Welded wire mesh guard screens
• Welded wire mesh detention and security
• Welded wire mesh machine guarding
PACKAGE & SHIPPING
Packaging steps:
Each piece put in on carton box, wood case, Plastics Packaging, pallet, etc.
Mode of shipping:
Shipping by air, sea or car.
By sea for batch goods;
Customs specifying freight forwarders or negotiable shipping methods.
Customize services
We can produce many kinds of Steel Wire Mesh products,if you have your own design or have specificationdrawing,we can make products as your requirement.
If you don't have any idea, please tell us where will it be using, we will give you some specification to refer,and we can provide the drawing also.
FAQ
Q1. How can we quote for you?
Please send us enquiry by email, with all the technical drawings you have. Such as material grade, tolerance, machining demands, surface treatment, heat treatment, mechanical property requirements, etc. Our specialized engineer will check and quote for you, we would appreciate the opportunity and will respond in 3-5 working days or less.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost.
But the sample cost can be refundable when your quantity of first order is above the MOQ.
Q3. Can you do OEM for us?
Yes, the product packing can be designed as you want.
Please feel free to contact us if you have any question.

---
