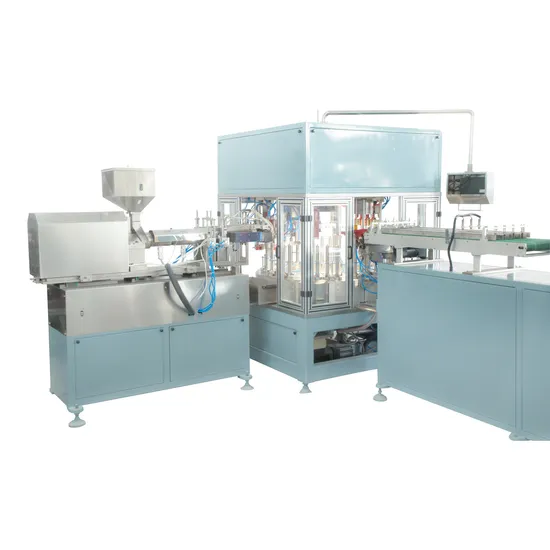

100PCS/Min Automatic Vertical Injection Molding Machine-Shoulder/Head/Neck/Mouth of Tube

Product Description

B.ZJ-IV Automaic High-speed Shoulder/Head/Neck Making Machine of Tubes(Samples of tubes will be free) Product Description
1. Description
B.ZJ-IV is a NEW product in Market which enter in market in year 2020 after 4 years R&D and testing, finally we bring this new technology and high capacity product to serve our new friends and old friends.
Laminated Tube Heading Machine-Four HeadsProduct Introduction
B.ZT-IV Automatic shoulder injection machine
Mould Size Diameter (mm): 19, 22, 25, 28, 30, 32, 35, 38, 40,50, 60
Automatic soft tube production line can connect Tube making (PE tube extruding, Lami tube welding) with shoulder injection machine forming an automatic process. This line is suitable for PE extrusion tube, plastic laminated and aluminum plastic laminated sealing tube.
The main technology is about the automatic shoulder injection machine.
(Same production) Tube making & shoulder injection total 2 operators Tube making & shoulder injection total 4 or 6 operators
Transferring process operators No requirement 2 operators
Operators Annual salary 60,000 RMB 120,000 RMB to 180,000 RMB
Power cost, quantity 1set 2sets
Power consumption 12KW 22KW
Power consumption
70% calculation 8.5KW 15KW
Power cost per day(1.2RMB/KWH) 224.8RMB 432RMB
Annual consumption (300days) 67,440RMB 129,600RMB
What's more, this automatic production line has advantage of sanitation, which decreases the pollution of manual tube put & lift, reaching requirement in stricter daily cosmetic and food packaging industry.
You can save more cost by making investment in this line instead of cost saving in more than 1 years.
Choose our products, choose our after-service.
SUNWAY products---your regretless choice!
Some question for Automatic shoulder injection machine:
1. Available diameters:Dia19-60
2. Production speed: 100pcs/min
3. Time for changing moulds: 4-7hours
4. 1-1-1 Operators needed for 100pcs/min whole line: Max. 2 people
5. Whole line power consumption: 65kw
6. Whole line occupies14meter(length)*10meter(width)
7. Whole line compressed air consumption in CBM:
ZJ-IV Shoulder injection machine: 1.0m3/min
B.GLS-III Tube machine: 0.6m3/min
B.ZFG-III Aluminum sealing &capping machine: 0.5m3/min
8. Cooling water temperature for whole line: 15 to 23.
9. Tube plant temperature keeps from 25 to 27.
Product Parameters

Power Supply	380V/50HZ
Power	15kW
Air Pressure	0.6Mpa
Air Consumption	0.75m3
Tube Diameter	Φ16-Φ50mm
Tube Length	55-200mm
Productivity	80-110pcs/min
Weight	2500kg
Dimension(L*W*H)	3.2m*1.4m*2.1m
Connection distributor(L*W*H)	2.75m*0.5m*1.0m

Configuration

Parts	Model	Manufacturer
Planetary reducer	ABR180-14-S2-P0	TFO(Taiwan)
Planetary reducer	AB142-20-S2-P2	TFO(Taiwan)
Planetary reducer	AB090-07-S2-P2	TFO(Taiwan)
Planetary reducer	ABR090-30-S2-P1	TFO(Taiwan)
Worm reducer	WPWDKS100-25-A	Jie brand
Vacuum generator	ZL212	SMC
Air gripper (parallel opening and closing type)	MHZL2-25D	SMC
Vacuum suction cups and connectors	ZP3-T13BN-A5	SMC
Main pneumatic components		AirTAC
PLC	6ES7512-1DK01-0AB0	Siemens
touch screen	6AV2123-2MB03-0AX0	Siemens
Servo motor drive	6SL3210-5FB10-8UF0	Siemens
servo motor	1FL6042-2AF21-1AA1	Siemens
servo motor	1FL6042-2AF21-1AB1	Siemens
servo motor	1FK2204-5AK01-1SA0	Siemens
Servo motor drive	6SL3210-5HE13-5UF0	Siemens
servo motor	1FK2210-3AB01-1SA0	Siemens
servo motor	1FL6092-1AC61-0AA1	Siemens
Servo motor drive	6SL3210-5FE13-5UF0	Siemens

Detailed Photos

Our Factory
FAQ
Q1:Are you manufacturer? Can we visit your factory?
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And of course welcome to our factory.
Q2: How about your prices?
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Q3: How's your products?
Answer: Parts of named-brand, best metals of machine boy are used to assure you of the best quality.
Q4: What's your advantage?
Answer: Compared with our competitors, we can offer you one-step service.The whole production line including machines, raw material, even toothpaste, cosmetic formulas for free are available.
And more? Please feel free to contact us.

---
