Product Details
Product Description
Product Description
X6132 horizontal universal milling machine
Specification
specification
| unit
| X6132
| X6132B
| X6132H
| X6132BH
|
Table size
| mm
| 320X1325
| 320X1600
| 320X1325
| 320X1600
|
Max Longitudinal travel(manual/auto)
| mm
| 700/680
| 900/880
| 700/680
| 900/880
|
Max transverse travel(manual/auto)
| mm
| 255/240
|
Max vertical travel(manual/auto)
| mm
| 320/300
| 410/390
|
Max rotary angle
|
| ±45°
|
Distance between spindle axis table
| mm
| 30/350
| 30/440
|
Spindle speed step
|
| 18 steps
|
Spindle speed range
|
| 30-1500
|
Feed range of table travel
| steps
| 18 steps
|
Main motor power
| kw
| 7.5
|
Feed motor power
| kw
| 1.5
|
Overall size (L x W x H)
| mm
| 2294X1770X1610
| 2294X2050X1610
| 2294X1770X1790
| 2294X2050X1790
|
N.W/G.W
| kg
| 2650/2950
| 2740/3040
| 2850/3150
| 2940/3240
|
Standard Accessories
1
| Crank
|
|
2
| Double head wrench
| 13*14
|
3
| Double head wrench
| 27*30
|
4
| Double head wrench
| 32*36
|
5
| Inner hexagon
| 5
|
6
| Inner hexagon
| 8
|
7
| Inner hexagon
| 10
|
8
| Milling arbor
| 22
|
9
| Milling arbor
| 27
|
10
| Milling arbor
| 32
|
11
| ISO50 Milling Arbor
|
|
12
| Milling Bar
|
|
13
| Push grease gun
|
|

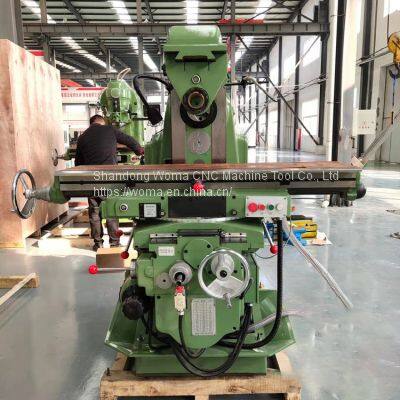

X6132 Photos
Company Information
Shandong Woma CNC Machine Tool Co., Ltd. is one of the leading machine tool manufacturers and exporters in Shandong Province, China. We have more than 20 years of manufacturer experience. Our main products include CNC machining centers, CNC gantry milling machines, vertical milling machines, horizontal milling machines, universal milling machines, gantry milling machines, ram milling machines and vertical drilling machines, with a total of 30 categories.
We are a manufacturer, not a trading company. All our products have passed CE and ISO9001 certification. Our main customers include KNUTH of Germany and Bernardo of Austria. You can trust our quality and service.
I hope we can establish a long-term business relationship with you.
Our service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
>>
