Copra Sesame Soybean Peanut Edible Oil Hot & Cold Oil Press with Filter

Product Description

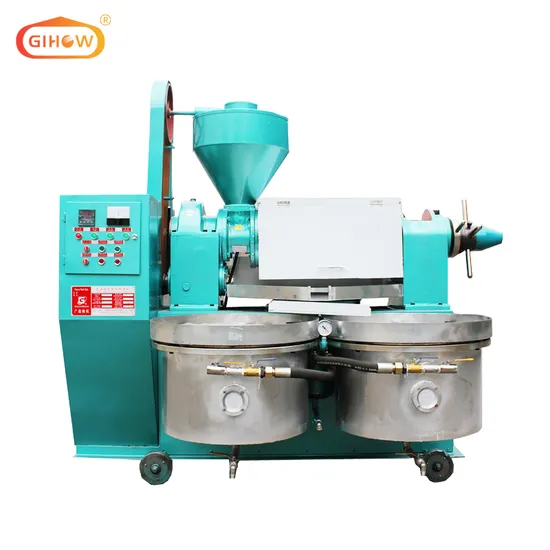

Guangxin Factory Automatic Cooking Oil Extractor Screw Oil Press with Oil Filter 6.5 tons per day Product Description

Processing capacity	6.5 ton per 24 hour
OIl content of dry cakes	less than 7.6%
OIl press power(kw)	11kw
OIl filtering power(kw)	2.2kw
Temperature control power (kw)	3.2kw
Spiral axes rotate speed(rpm)	32-44rpm
Measurement(L*W*H)(mm)	2120*1350*1940
Weight(kg)	1080

Oil Production Line
More Different Models

Model	Processing Capacity (t/24h)	Motor Power (kw)	Weight (kg)	Measurement(mm)(L*W*H)	Oil Content of Dry cakes (%)	Spiral Axes Rotate Speed (r/min)
YZYX70	1.3	4	195	1180*405*1120	≤7.8	33-42
YZYX90	3	5.5	285	1250*550*1140	≤7.8	32-42
YZYX10(95)	3.5-4	7.5 or 11	528	1650*730*1340	≤7.8	32-40
YZYX10-6/8/9	4.5	11	590	1760*730*1340	≤7.8	32-40
YZYX10J-2	4.5	11	600	1770*730*1340	≤6.0	32-40
YZYX120	6.5	11 or 15	680	1860*740*1275	≤7.0	28-40
YZYX130	8	15 or 18.5	825	2020*742*1420	≤7.6	32-40
YZYX140	9-11	18.5 or 22	806	2010*750*1430	≤7.6	32-40
YZYX120J	7	11 or 15	718	2110*780*1350	≤6.0	35-40
YZYX130GX	8-10	18.5	998	2100*820*1400	≤7.8	30-40
YZYX140GX	9-11	18.5 or 22	1000	2150*820*1420	≤7.8	30-40
YZYX140CJ	9-11	22	980	2220*750*1420	≤7.8	32-40
YZYX140CJGX	9-11	22	1100	2300*820*1420	≤7.8	30-40
YZYX168	20	37 or 45	1820	2750*1100*1830	≤7.4	36-44

Characteristics of Our Machine

1. Healthy!
Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
2. High working efficiency!
The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
3. Long durability!
All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.
4. Cost-effective!
The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
Our spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise. Internal Structure Of Oil Press Our Factory

1. More than 30 years of experience in manufacturing oil press.
2. 7 patents of oil press technology.
3. Full inspection before delivery, quality pass rate more than 98%.
4. More than 300 professional workers. 10% of them are mechanical engineers technicians.
5. Widely used in our life, have been exported to more than 70 countries.
certificate Worldwide Exhibition Packing and Delivery FAQ

Q: Are you a factory or trading company ?
A: We are factory with 30year's manufacturing experiences, and we also have our own trading company . our main products including :screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.
Q: How can we verify that you are a factory ?
A: You can add our contact information and we will show our factory to you online.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our machine has been tested ok and fully assembled before shipping, customer just needs to make 2-4hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 tims to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (we produce seeds roaster heated by economical fuel.)
Q:What serivice do you provide?
A: (1) 1year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can i become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.
We will appreciated if these following 2 tips contained in your inquiry.
Tips1.The raw material is:_______
Tips2.The capacity of the machine you need is:______
Thank you and looking forward to your inquiry,we will response immediately.
Make order right now! And why?
One of our clients called us for buying wearing parts and he told us that his machine bought from us in 1990s. Its really! So, don't worry about the quality. Its beter than your think!
Guangxin Oil Press Machine Factory
Jerrie: +86 18030981806
Sichuan Guangxin Machinery of Grain & Oil Processing Co.,Ltd
Mianyang Guangxin Import & Export Co., Ltd
Add: Southern Section Of 1st Ring Road, Huagai Industrial District, Anzhou, Mianyang, Sichuan, China

---
