Factory Price Mini Lathe Machine Slant Bed Metal Lathe Tck36A Tck46A Tck50A Tck56A Tck66A

Product Description

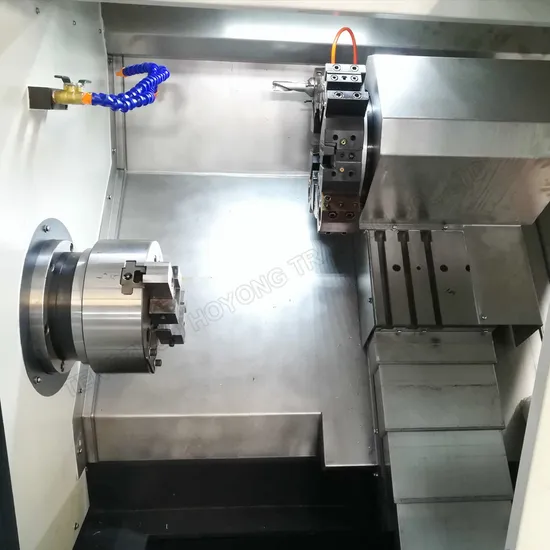

SLANT BED LATHE MACHINE
1. 45 degrees slant easy and fast to convey chip
2. one-piece cast integral bed, torsional strength and flexural rigidity is obviously increased
3. high rigid and high precision independent spindle unit, increase thermal stability and precision.
4.TAIWAN Hiwin linear guide way and ball screw, hardness over 58 degrees, ensure highest speed, highest machining precision and excellent dynamic
performance.
5.hollowed hydraulic chuck and hollowed oil cylinder
6.Particularly designed heavier loading bottom base, widened machine bed, strengthened plate ensure to high strength machining strict requirements.
SPECIFICATIONS:

SLANT BED AUTOMATIC LATHE		TCK46
Capability	Chuck at optional	8"
	Collet	CL-42A5(3-42mm)
	Max. swing dia. over bed	460mm
	Max. swing dia. over cross slide	140mm
Machine accuracy	X/Z position accuracy	0.005mm
	X/Z repeatability	0.003mm
X/Z axes	X/Z travel	380/350mm
	X/Z rapid feeding speed	20/20 m/min
	X/Z motor torque	6Nw
	X/Z mini. setting unit	0.001mm
	X/Z guide way	Taiwan Hiwin linear guide
Spindle	Max. speed	3000rpm
	Go-ball dia. of spindle	43rpm
	Motor power	5.5Kw
	Inter dia. of spindle draw pipe	43mm
	Distance from tool to spindle center	20mm
Tool	Tool quantity	4-piece raw tool holder
	Tool bar section size	20*20mm
Net weight		2600kg

---
