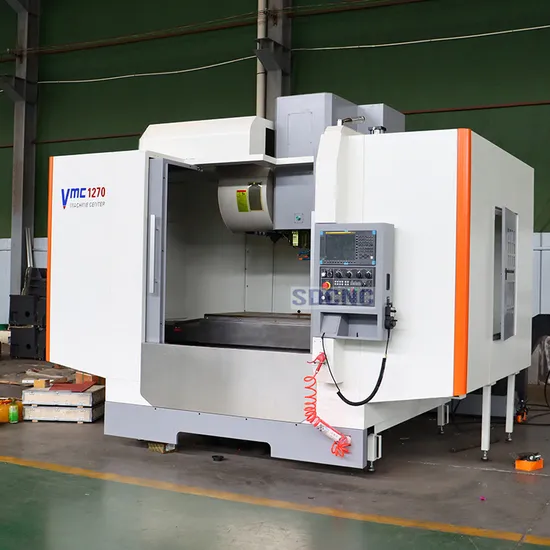

Vmc1270 Vertical Machining Center for Precision CNC Metal Processing

Product Description

Features:
High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional Application: This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough
machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical parameters:

specifications	unit	VMC1270
Table size	mm	1400x710
Table maximum load	kg	1000
X/Y/Z axis travel	mm	1200x700x650
Distance between spindle center and column surface	mm	785
Distance between spindle end face and worktable surface	mm	150-800
X/Y/Z max. feed speed	mm/min	10000
X/Y/Z max.rapid traverse	m/min	15/15/15
Max. spindle speed	r/min	8000
Spindle taper		BT50
Spindle motor	kw	11/15
X/Y/Z axis servo motor	kw	4/4/4
X/Y/Z motor connection		direct
X/Y/Z guide rail form		hard rail
T slot(number-width-pitch)		5-18-152.5
Repeat positioning accuracy	mm	±0.004
Tools type		arm
Tool magazine capacity		arm:24
Max.tool weight	kg	15
Max. tool length	mm	350
Electric capacity	KVA	22
Machine dimension	mm	3600*3000*2700
Machine weight	kg	10000

---
