Ck6165e CNC Lathe with Factory Price

Product Description

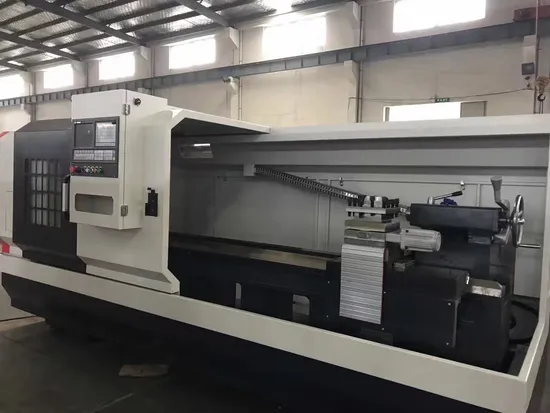

CK6165E CNC lathe
Product Description

SIMPLE INTRODUCTION
CK6165Eseries is horizontal lathe used for machining various kinds of steel parts. It is specially suitable for mass production of machining inside and outside cylinder surface, end surface, metric and inch thread etc.
Product Parameters

Bed width	mm	550
Max. swing over bed	mm	Φ650
Max. swing over cross slide	mm	Φ375
Max. Work piece length	mm	3000
Max. Processing length	mm	2900
Max. Processing diameter of plate	mm	650
Spindle nose		C11
Spindle bore	mm	Φ105
Spindle taper		Metric 120-1:20
Spindle speed range	rpm	10-85, 40-350, 100-850 variable frequency step-less in step
Spindle steps		three-step, GEAR-BOX TYPE SPINDLE
Spindle motor power	kw	15
X axis travel	mm	400
Z axis travel	mm	3100
X/Z axis torque	N.m	X:10 Z:30
X/Z axis fast feeding speed	m/min	4/5
X/Z repeat-ability	mm	+/-0.005
Processing accuracy		IT6-IT7
Work piece surface roughness		Ra1.6
Tool bar section	mm	40x40
Tail stock quill dia.	mm	Φ100
Tail stock quill travel	mm	250
Tail stock quill taper	#	MT6
Total rated power	kw	20
Total rated current	A	42
N.W.	kg	5800
Machine dimension (L*W*H)	mm	5300 X2000X2000

STANDARD ACCESSORIES
Gear box type spindle has three manual steps. one-piece casting for machine bed Bed width 550mm 15 kw servo type spindle motor 4 station electric turret with tool size 40X40mm 6. 320 mm three-jaw auto centering manual chuck
7. MT6# manual tail stock with rotary center
8. Electric power: 380V±10%/ 50±1 Hz/ 3 phase AC. Other voltage is paid additionally.
9. half enclosed splash metal guard
10. Coolant system, lubrication system, lighting system,
11. mechanical and electrical user manual, control system operating manual, electrical drawing etc Detailed Photos

---
