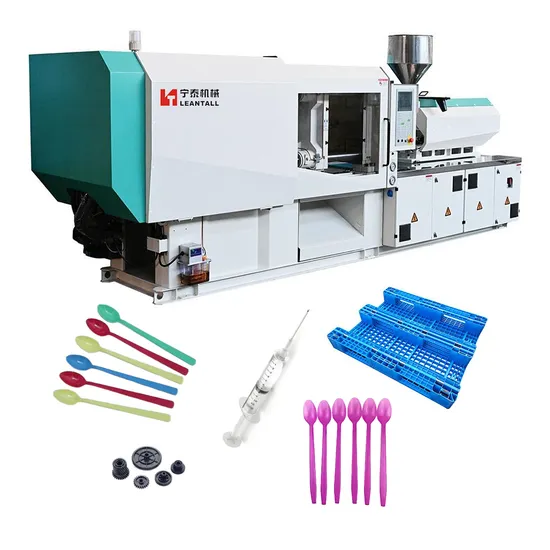

120 Ton Plastic Injection Machine Syringe Barrel/Plunger/Gasket Thin-Wall Iml Projects Short Cycle-Time

Product Description

Product Parameters

Part	Name	Unit	NT120
Injection unit	SCREW DIAMETER	mm	32	35	38
	SCREW L/D RATIO	L/D	22	20	18.5
	INJECTION STROKE	mm	165	165	165
	NJECTION SPEED	Mm/sec	104	104	104
	SHOT VOLUME(THEORETICAL)	CM3	133	158	187
	INJECTION WEIGHT(PS)	g	121	144	170
	INJECTION PRESSURE	Mpa	203	170	144
	INJECTION RATE	cm³/sec	83	100	117
	SCREW SPEED	rpm	210
clamping unit	CLAMP FORCE	Kn	1200
	OPEN STROKE	mm	330
	SPACE BETWEEN TIE BARS	mm×mm	360X360
	MAX.MOULD HEIGHT	mm	380
	MIN.MOULD HEIGHT	mm	150
	EJECTOR STROKE	mm	100
	EJECTOR FORCE	Kn	33
	EJECTOR NUMBER	N	5
others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	11
	HEATING POWER	Kw	7
	MACHINE DIMENSION(L*W*H)	m×m×m	4.25*1.1*1.85
	MACHINE WEIGHT(ESTIMATE)	T	3.1

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
