US$22,000.00-28,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Jumbo paper roll
Work Method
Flat Knife or Round Knife
Classification
Slitter Rewinder
Applicable Process
Process Materials
Suitable Substrates
Film Cutting & Adhesive Paper Cutting
Packaging Material
Film & Paper
Main Motor
Siemens,Germany
Frequency Inverter
Yaskawa,Japan
Touch Screen
Weinview,Taiwan
Rewinder Motor Brand
Siemens, Germany
Rewind Frequency Inverter
Yaskawa, Japan
Profortional Valve
SMC, Japan
Magnetic Powder Brake
Ningbxia
Min. Slitting Width
30 mm
Max. Unwind Diameter
800mm , 1000mm , 1200mm
Max. Rewind Diameter
600mm
Max. Slitting Speed
300 M/Min , 400 M/Min
Transport Package
Wooden Pallet Package
Specification
2200 x 3600 x 1700 mm
Production Capacity
200 Sets/ Year
Product Description
FHQR-1300 model Automatic Adhesive Paper, BOPP, CPP, PET, PE Slitting Machine Slitter
Factory photos
Application Area
This machine is used for cutting different kinds roll materials,such as BOPP,PET,CPP and PVC,Paper , Adhesive Paper other similar material etc....
Feature
1. Electrical control system adopts PLC and touch screen for control. And according to different requirements of products to set and display the working parameter.
2. Rewinding adopts vector frequency inverters, roll diameter calculated by PLC to realize automatic tension control.
3. Loading and unloading using shaft-less pneumatic cone top type. It is easy for laoding, unloading and with high efficiency, has web guide system.
4.Rewinding shaft is double slip air shaft, uses the straight knife and rotary knives for slitting, regularity disc surface,air exhausting device for the waste.
5.The system has meter counting, winding diameter operation, automatic stop by setting length you need first.
Main Technical Parameters
| Unwind width | 400 - 1300mm |
| Slitting material | BOPP Film12-220um, PE, PVC Film 40um - 250um. |
| Maximum unwind diameter | φ800 mm |
| Maximum rewind diameter | φ600 mm |
| Paper Core Diameter | 76mm |
| Maximum machine speed | 300 M/min |
| Min. Slitting width | 30 mm |
| Range of slitting width | 30 - 1300mm |
| Deviation correction precision | ≤ 0.4mm |
| Tension setting range | 0 - 100 Kg |
| Draw roller motor | 3 kw |
| Total power | 9 kw |
| Machine size | 2200 x 2700 x 1700mm |
| Machine mass | 3000kg |
| Machine colour | TBA |

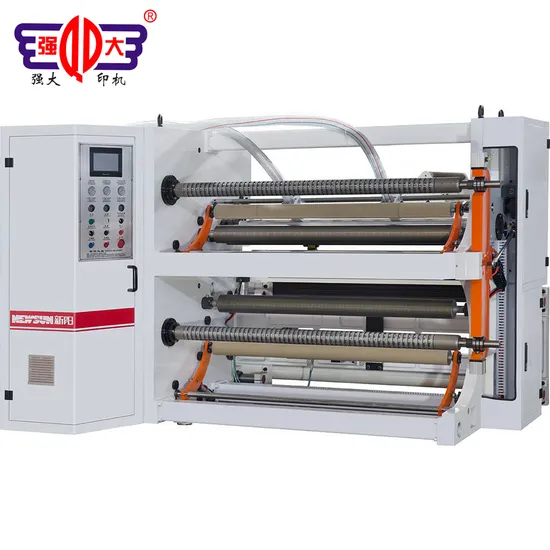

Machine photos
>>
