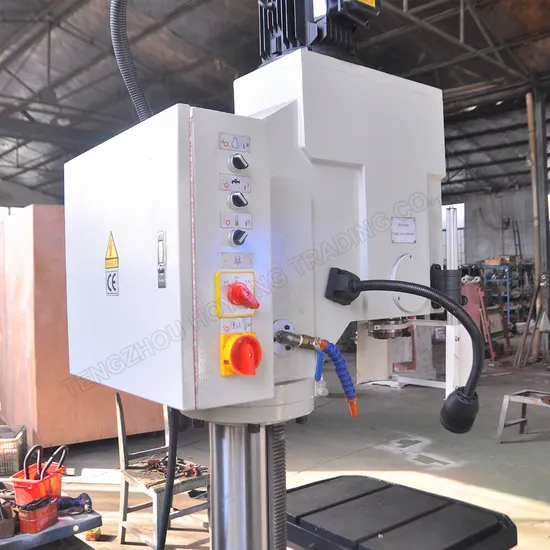

High Precision Auto Feed Drilling Machine Z5150A Z5150b Z5140A Z5140b

US$2,500.00-4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5150A Z5150B Z5140A Z5140B
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Manual
Number of Shaft
Manual
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Driiling Capacity
50mm
Max.Spindel Travel
250mm
Spindle Bore Taper
Morse 5
Spindel Speed
31.5-1400rpm
Motor Power
3kw
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
845929000
Production Capacity
300

Product Description


SQUARE COLUMN VERTICAL DRILLING MACHINE FEATURES:
Square-column vertical drilling machine is a universal general-purpose machine. Its used for counter-sinking, spot-facing drilling, tapping, boring, reaming,
etc.The machine has catch the function of tap-automatically reversing device which is suitable for tapping of blind and determined holes.
The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance
and operation.
SPECIFICATION
SPECIFICATION UNITS Z5150A Z5150B
Max. drilling diameter mm 50 50
Spindle taper morse 5 5
Spindle travel mm 250 250
Spindle box travel mm 200 200
Number of spindle speeds step 12 12
Range of spindle speeds r/min 31.5-1400 31.5-1400
Number of spindle feeds step 9 9
Range of spindle feeds mm/r 0.056-1.80 0.056-1.80
Table size mm 560×480 800×320
Longitudinal(cross) travel mm / 450/300
Vertical travel mm 300 300
Max.distance between spindle and
table surface
mm 750 750
Motor power kw 3 3
Overall
dimension
mm 1090×905
×2465
1300×1200
×2465
Machine weight kg 1250 1350
