Aluminum Autoparts Gravity Die Cast Machinery Factory Spare Parts Weight Die-Casting Equipment Foundry Aluminium Parts Casting Machine Manufacturer

Product Description

Aluminum Autoparts Gravity Die Cast Machinery Factory Spare Parts Weight Die-Casting Equipment Foundry Aluminium Parts Casting Machine Manufacturer Product Description
Place of Origin:Jiangsu, China
Condition:New
Machine Type:gravity casting machine
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:PLC, Motor, Pump
Brand Name:BQOIAO
Voltage:380,410V
Power:8.5KW
Dimension(L*W*H):3210*1580*1750mm
Weight:4600 kg
Certification:ISO,CE
Warranty:1 Year
After-sales Service Provided:Field installation, commissioning and training, Online support
Key Selling Points:Easy to Operate
After Warranty Service:Video technical support, Online support, Field maintenance and repair service
Local Service Location:Egypt, Brazil, Pakistan, India, Russia
Showroom Location:Egypt, Brazil, India
Applicable Industries:Manufacturing Plant
Application:Foundry Industry
Usage:aluminum casting
Feature:High Efficiency
Type:casting machine
Operation:Siemens PLC+HMI
Color:OEM
Design:OEM & ODM
Supply Ability
Supply Ability 10 Set/Sets per Month
Packaging & Delivery
Packaging Details As required package
Port SHANGHAI
Lead Time:

Quantity(Sets)	1 - 2	3 - 6	>6
Est. Time(days)	40	60	To be negotiated

Product Overview

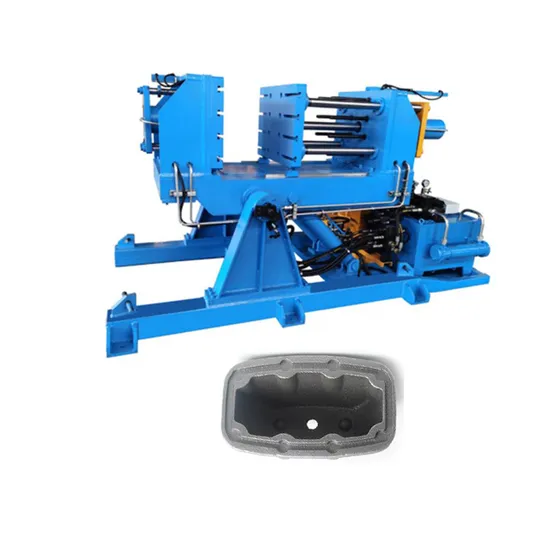

Gravity casting machine uses metal and filling by using gravity.The advantages of machine are easy operation,mold life is long,high efficiency and low machine cost.Operater can set different casting parameters and process by Siemens HMI and PLC according to real needs,and at some time,multiple casting combined with one or two robot arm to constitute a casting unit,it can achieve automatic operation and save lats of labor cost.Gravity casting machine can produce many aluminum casting,especially the intake manifolds,brackets,key types and other casting.It is most popular at foundry industry.
FEATURES AT A GLANCE
Cost-effective
Low machine cost
High efficiency
Easy to operate
PLC+HMI control system
Energy saving
Compact structure,bueatiful performance
Small footprint

PRODUCT SPECIFICATIONS

Parameter	Unit	ZJ750	ZJ860	ZJ1210
Mold installation size	mm	700*500	800*600	1200*1000
The distance between the mold installation platen	mm	400-900	450-1050	550-1350
The mix distance between the two platen	mm	400	450	550
The max distance between the two platen	mm	900	1050	1350
The distance of movable platen	mm	500	600	800
Diameter of main cylinder	mm	125	150	180
The distance of ejection cylinder	mm	100	100	150
Diameter of ejection cylinder	mm	120	125	150
Opening force	KN	122	176	254
Closing force	KN	94.4	138	202
Ejection force	KN	86	94.4	138
Tilt angle	°	0-90	0-90	0-90
The diameter of tilt cylinder	mm	80	100	100
PLC+touch screen		Siemens
Motor power	KW	5.5	15	15
Hydraulic tank capacity	L	400	500	500
Price	Set	16500	20000	26000

Related Equipment We Can Supply:
We can provide customers with a complete set of low-pressure casting products.The initial period,for example, the upfront budget for products not in production, including the budget for production costs, the budget for molds and equipment, and the development of production processes in the medium term, in addition to providing qualified equipment to customers.
The process of producing the product is developed, and the entire production process is handed over to the customer,training and ensuring that the customer can understand and learn, then fully grasp th e production process of low pressure casting. In the later stage, in addition to providing warranty service during the warranty period, a lifetime paid maintenance service will be provided after the warranty period.
In addition, we can also provide equipments and processes for heat treatment of aluminum alloy products, such as aluminum alloy aging furnace(T4), aluminum alloy vertical quenching furnace(T6),etc. and provide a variety of casting equipments including resistance melting furnace.

---
