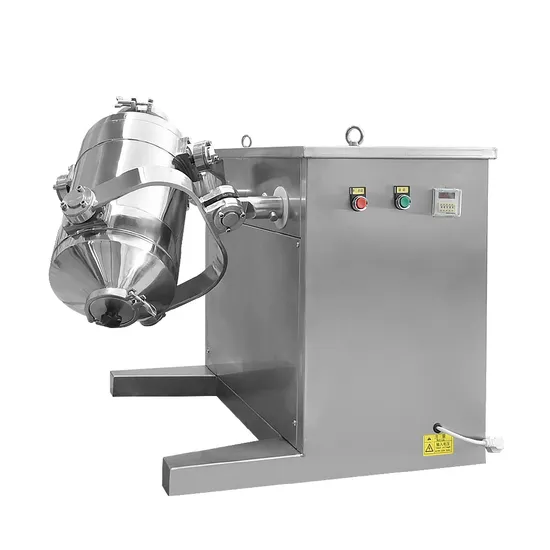

Sbh-20 Pharmaceutical Powder 3D Mixer

Product Description

SBH Type Mixer With Three-Dimensional Swing This machine is suitable for mixing dry-powder material of pharmaceutical, chemical and food industries. It is used in mixing evenly and quickly between different proportion and fineness of materials. The working principles when the machine is in operation. Because of the running actions of the mixing tank in multi direction, the now and derision of the various kinds of materials are sped up in the process of mixing. At the same time, the phenomenon is avoided that the congregation and segregation of the material in gravity ratio caning due to the centrifugal force in the normal mixer and extremely good effect can be obtained. Series Multi directional Movement Mixer consists of the base, driving system. Electric control system, multi-directional, movement mechanism and mixing tank. The mixing tank to be in contact with the materials is made of quality stainless steel, with both inside and outside of the tank mirror polished. Because the nixing tank performs a multi directional movement, there are many points of mixing with a good effect of mixing. The uniformity of the mixing iceberg than that of the normal mixer. The shape of the mixing tank is reasonably designed with no death corner and both the inside and outside polished. The discharge of materials is free with no accumulation. It is easy to clean.The materials are mixed in an enclosed state. With no contamination to the working environment and materials.

Model	Barrel capacit (L)	Capacity max(L)	Capacity weight (kg)	Spindle speed(r/min)	Motor power (kw)	Weigh (kg)	Overall size (mm)
SBH10	10	8	5	0-15	0.55	200	800*1200*1000
SBH50	50	40	25	0-15	1.1	300	1000*1400*1200
SBH100	100	80	50	0-15	1.5	500	1200*1700*1500
SBH200	200	160	100	0-15	2.2	800	1400*1800*1600
SBH300	300	240	150	0-15	4.0	1000	1800*1950*1800
SBH400	400	320	200	0-15	4.0	1200	1800*2100*1950
SBH500	500	400	250	0-15	5.5	1380	1900*2000*2100
SBH600	600	480	300	0-15	5.5	1500	1900*2100*2250
SBH800	800	640	400	0-15	7.5	2000	2200*2600*2600
SBH1000	1000	800	500	0-15	7.5	2500	2250*2600*2600
SBH1200	1200	950	600	0-15	11	2800	2400*2800*2800
SBH1500	1500	1200	750	0-15	15	3000	2500*2950*3000

---
