Product Details
Product Description
Product Description

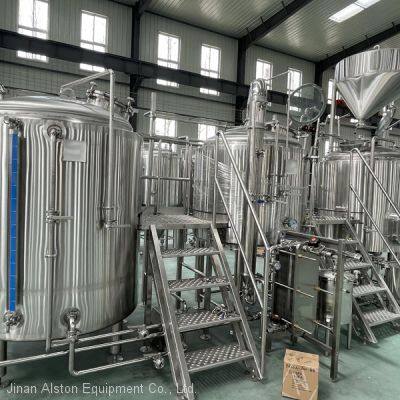

5-15BBL Brewing System
Brewhouse is designed and fabricated as the exact brewing process request from client and the local requirement. Tanks size designed as exact beer plato / gravity from client. The goal is helping client with easy brewing operation, making the whole brewhouse setup more suitable for right recipe , increasing the efficiency and lowering the energy cost etc.
Brewhouse:
2 vessel: Mash/Lauter tank+Kettle/Whirlpool
3 vessel: Mash Lauter tank+Brew Kettle+Whirlpool
Brewhouse Features:
● Higher wort extract.
● Lower energy cost and material consumption.
● Well adjusted temp and water blending unit for better grain and water mixing.
● Higher efficiency steam jacket to increase heating efficiency and lower energy consumption.
● Special tank and piping construction to avoid the wort aeration problem and decrease the material lost.
● Special designed steam condensing unit, with both steam condensing and water heating function.
● Adopting advanced world famouse brand components to ensure the smoothly running.
● Support different heating way, steam, direct fire and electric, depending on site and local utility costs.
● High-quality stainless steel material 304 or 316 and exquisite appearance.
● Brewing vessel and fermentation tanks are tested prior to shipment to avoid on-site repairs, guarantee uninterrupted startup and assured vessel performance.
2.Fementation tank:
All tanks are made by sanitary SS304 material, which meet domestic and international food safety and hygiene standard. They are cylindrical cone bottom tank, the cone is 60-72degree for exhaust the yeast easier. The external are made by 2B stainless steel drawing board, connected by welding.
The internal pickling passivation treatment, and equiped with 80mm polyurethane insulation.
The tanks with dimple cooling jacketon cone and cylinder, they are cooled by glycol water or alcohol water.
Also the glycol inlet is seperated control according to volume of tank.
>>
