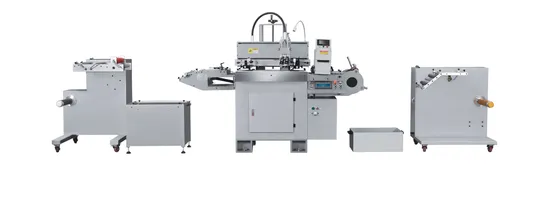

Automatic One Color Screen Printing Machine with LED UV or Taiwan UV Light

Product Description

Feature:
Full Automatic High-speed Screen Printing Machine
(1) Controlled by servo motor, adjusting printing position by auto sensors system;
(2) Tension controller and the brake make the conveying exactly;
(3) Micro adjusting meter for frame adjusting automatically;
(4) UV dryer, make the any kind ink dry enough;
(5) Free set up the printing times and the carry times on electronic touch screen;
(6) Most core parts import from Taiwan & Japan;
Teachnical Specifications:

Model No:	450
Printing size(mm)	440×600
Screen frame size (mm)	900×700
Max. Web width(mm)	450
Printing speed (IPM/Min)	0-100
Precision	±0.05mm
Power	2 phase 220V, 50/60Hz 15 KW
Max Feeding/Rewinding Diameter	700mm

Please note the machine speed may be limit by other units.
Standard Accessories

Main body	1PC
Paper feeder with air-suction unit	1PC
Rewinder	1PC
UV dryer	1PCS
Squeegee & Scraper	3PCS
Aluminium frame	2PCS

UV Technical Parameter:

Model (mm)	450
Voltage	3 phase 380V, 50/60Hz
Total Power	7.0Kw

Main accessories and Brand

Mainbody
No	Name	Brand
1	Pull servo motor	HUIKUANG
2	Printing servo motor	HUIKUANG
3	PLC	KUNSHANG
4	Electric Relay	JAPAN Hequan
5	Sensor	Japan Panasonic
6	Solid-state relay	TAIWAN YANGMING
7	Suction Device	Ruijing
8	Speed reducer	Japan KMI
9	Air cylinder	SMC

Machine Detailed Pic for Reference:

About us Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries.
Packing and Loading of Machine:

---
