| Product Parameters |
| Laser | Type | Fiber Q-switched pulsed lasers |
| Pulse frequency range | 30~60KHz | |
| Power | 20W / 30W / 50W | |
| Adjust the space | 1D, 2D, 3D(optional) | |
| Wavelength | 1064nm | |
| Laser class | Class 4 laser products ~ in line with IEC60825-1 standard | |
| Identify attributes | Identify the direction | 0- 360° |
| Identify the region | Standard 100*100mm (customizable) | |
| Standard working distance | 110~275mm(customizable) | |
| Spot size | 5.7-8mm | |
| Marking content | 1D and 2D barcodes, icons, Chinese and English and numbers | |
| Scribing speed | The fastest marking speed can reach 20m/s | |
| Interface | Operator interface | 10-inch full-color touchscreen |
| Communication interfaces | RJ45, RS232, RS485, USB | |
| Operating environment | Rated voltage | 200~240V 50/60Hz |
| Ambient temperature | 0~40ºC | |
| The power of the whole machine | ≤500W | |
| Humidity range | non-condensing Relative humidity < 70% | |
| Ingress protection | Standard IP54 (customizable) | |
| Ingress protection | Air-cooled | |
| Product quality | Optical path weight:3.75kg Chassis weight:18.1kg |
| Product Main Component | |||
| Laser emitter | F-theta lens | control panel | 3D Column |
| Application Industry |
| Food industry | Beverage industry | Pharma industry | Cosmetic industry |
| And many more ... | |||
| Cable&wire industry | Pipe industry | Hardware & tools industry |

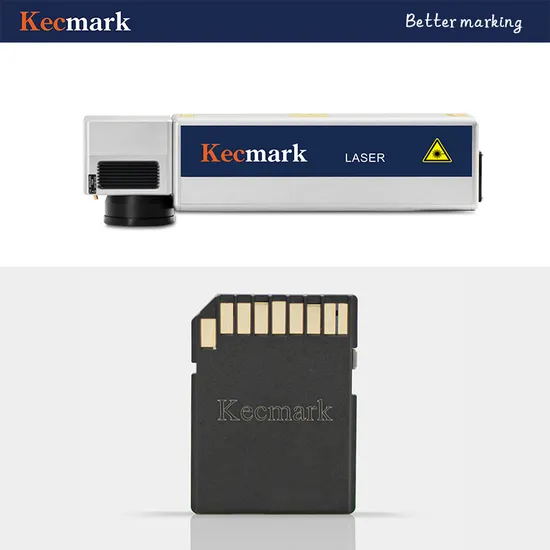

| Marking Samples |
| Optional Configuration |
| Conveyor Belt | Page dispenser machine | Smoke purifire (CO2 laser need only) |
| Our Advantages |
| Creativity - Innovation Independent R&D team,continuous innnovation with passion . Professional technical engineers team, concentrate on technical upgrade for better marking . | |
| Credibility - Integration Focus on industrial 4.0 , aims to improve the production efficiency and industrial automation . The markers could integrate into assembly lines and packaging machines and packaging lines. | |
| Economical and efficiency There is no consumables cost needed , with power connnected , it will keep working . Fewer maintenance required, just routine cleaning is okay . | |
| Precision and accuracy The marker configurated with world-advanced emitter and lens , which guarantees it will continuous to deliver precise and accurate marks. | |
| Widely compatible The marker suitable for versatile packaging subastrates and materials ,which commonly used on food & beverage industry, pharmaceutical , daily cosmetic and hygiene and more. |
| Company Profile |
| Packaging&Shipping |
| FAQ |
1.What a fiber laser marking machine can do? A fiber laser marking machine has a great advantage for the hard, brittle and dark material marking. Fiber laser marking machine can performance well on the most of the metal materials, non-metallic materials and plastic part specific, cover the every parts of our daily business . 2.How to choose the most suitable laser marking machine? There are five points you need to consider before you choose a laser marker : - Consider what materials you want to mark . - Consider the laser power that you need . - Consider what accuracy and speed that you need . - Consider the support . - Else , safety ,budget,working field , 3.How laser marking machine works? Laser marking works by using a focused beam of light to mark the surface of a material. When the beam interacts with the material's surface, it alters the material's properties and appearance , and then leave the clear ,durable and permanent marks on the materials' surface . 4.How to installation and maintenance the laser marking machine? We will provide installation videos for you before shipping , you can check the videos and installation the laser marker ; if any questions during installation , we can support face to face technical service . Even you are navice , you can take that all easily . As for maintenance , the laser marking machine no neeed special maintenance operations , just routine clean is okay . 5.Can I get some tests before I decide which to buy? Yes , free test offering . Before order , you can send the packaging samples to us , the items that you want to mark the code on it , we will do free test for you with different laser , ensuring that you choose the most suitable ones and help you save money and energy . 6.What's the main difference between the laser marker and inkjet printer? Laser marker and inkjet printer are both coding method for industrial use . The biggest difference between this two method is that laser marker doesn't need consumables and maintenance , it has obvious advantages on anti-conterfeiting , the laser marks are legible and durable on the whole life cycle of the product , and it's resistant to erasure . And the inkjet printer , they deliver coding without alter the materials' properities and appearance , just leave the codes on the surface of the materials . On anti-conterfeiting and traceability solutions , it has safety risks . |
