UTP Cat5e/Computer Cable/ Data Cable/ Communication Cable/ LAN Cable Cat5e

Product Description

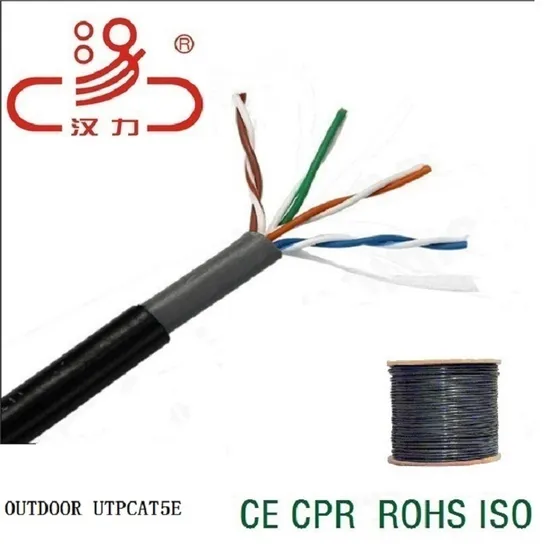

Outdoor double sheath UTP CAT5E

UTP CAT 5E PVC
Product Name/Code : UTP Cat 5E PVC		Performance
		Frequency	RL	Attenuation	NEXT	PSNEXT
Application		(MHz)	(dB)	(dB/100m)
100 Base-T4			min.	max	(dB)
100 Base-TX		0.722	22.60	1.82	67.00	64.00
100VG - AnyLAN		1.000	20.20	2.00	65.30	62.30
1000 Base-T (Gigabit Ethernet)		4.000	23.00	4.10	56.30	53.30
155 Mbps ATM		8.000	24.50	5.80	51.80	48.80
622 Mbps AT		10.00	25.00	6.50	50.30	47.30
Reference Standard		16.00	25.00	8.20	47.30	44.30
EIA/TIA 568B & ISO/IEC 11801		20.00	25.00	9.30	45.80	42.80
Cable Construction		25.00	24.30	10.4	44.30	41.30
Conductor	Solid Bare Copper	31.25	23.60	11.70	42.90	39.90
AWG	24	62.50	21.50	17.00	38.40	35.40
Conductor Diameter(mm)	0.5	100.00	20.10	22.00	35.30	32.30
Insulation	Solid PE	Frequency	ELFEXT	PSELFEXT		ACR
Average Thickness(mm)	0.217	(MHz)
Insulation Diameter(mm)	0.95		(dB)	(dB)		(dB)
		0.722	66.00	63.00		65.00
Sheathing	PVC/PE	1.000	63.8	60.8		63.30
Thickness(mm)	1.1	4.000	51.7	48.7		52.20
Diameter(mm)	5.20	8.000	45.7	42.7		46.00
		10.00	43.8	40.8		43.80
Core Identification/Color Code	According to customer request	16.00	39.7	36.7		39.10
Bending Radius	6xOverall Diameter	20.00	37.7	34.7		36.50
		25.00	35.8	32.8		33.90
		31.25	33.9	30.9		31.20
Fire Performance		62.50	27.8	24.8		21.40
Flame Propagation Test to IEC 60332-Part-1(PVC) Flame Propagation Test to IEC 60332 Part 1 and Part 3 (FRPVC)		100.00	23.8	20.8		13.30
		Electrical Performance
		Max.Conductor DC Resistance at 20 ºC(Ω/Km)				< 93.8
		Operating Temperature( ºC )				70
		Velocity of propagation				68%
		Impedance(ohm)				100 ±15

Our Services
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
