Best Selling Ultrafine Healing Drugs Crushing Machine Mill Machine

US$30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
yangjingyi11
Cutter Material
Hard Alloy
Drive
Electric
Object
Coal, Metal, Plastic, Wood
Type
Impact Crusher
Capacity
1000-3000kg
Power
75kw
Transport Package
Impact Crusher
Trademark
RXT
Origin
China
HS Code
8474209000
Production Capacity
500-2000kg/H

Product Description

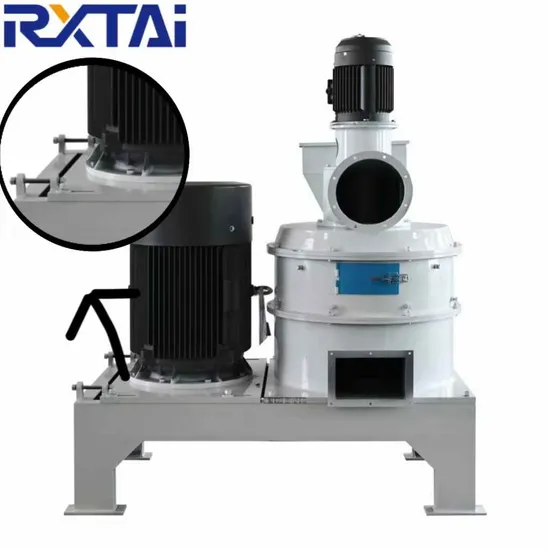

Industrial Impact Crusher for Pharmaceutical, Chemical, Agricultural and Feed Making Grinder Grinding Machine
No.ItemRXT75
1Motor Power(kW)75
2Air pipe diameter(mm)
Before cyclone220
After cyclone273
After pulse273
3Cyclone X55-Φ600
4Air lockerGFZY-5
5Pulse dust collectorRXTMC42
6Centrifugal fan18.5/22kW

The material that has undergone initial cleaning and magnetic separation enters the crushing chamber through the spiral feeder for crushing. Due to the high-speed rotation of the grinding disk, the material is crushed by the impact of the hammer blade mounted on the grinding disk under the action of centrifugal force, and then spun at a very high speed onto the surrounding gear ring. Due to the small gap between the hammer blade and the gear ring, it is further crushed here. The crushed material is carried between the inner wall and the splitter cover by the airflow entering from under the crushing disc, and then enters the classification chamber. It is classified by the combined action of wind, gravity, and centrifugal force of the classification wheel. The separated coarse material returns to the crushing chamber from the inner cavity of the splitter cover and is re crushed. The fine material (finished product) is sucked into the classification impeller, enters the discharge chamber, and enters the air mesh system from the discharge port.
FAQ1. How can I know your quality?
Our company is famuous in our industry. We have more than 10 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
