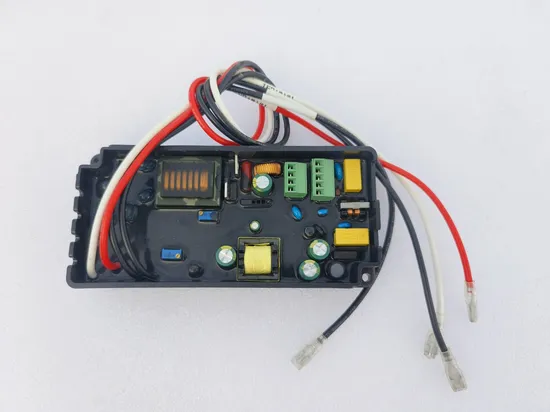

10kv 10W W Series Electrostatic Dust Removal Air Purification and Disinfection Equipment High Voltage Power Supply

Product Description

Product Description WHR high voltage power supply is a supporting power supply for electrostatic dust removal and air purification and disinfection equipment. It has two working modes: constant voltage and current limiting or constant current and voltage limiting. The output voltage is stable and the current is controllable. It has working, cleaning, and fault status feedback. It has a built-in programmable single-chip microcomputer chip, counter protection, and timed restart. The arc protection sensitivity is adjustable.
*Adjustable voltage and current
*Dual closed-loop control
*Arc extinguishing function
*Reasonable EMC precautions
*RoHS compliant
*UL certified
*Pouring silicone
Typical applications:
Air purifier, disinfection machine, return air purifier.

Specifications: Input voltage: 110~220VAC Output high voltage: -10/-8kV Output polarity: Specify positive or negative polarity when ordering Output current: 1000uA Output voltage accuracy: 0.5% Signal output: operation, cleaning, fault Protection logic: arc, short circuit, undervoltage, overload protection Operating temperature: -10ºC~+50ºC Storage temperature: -20ºC~+80ºC Humidity: 10%~90% without condensation Weight: about 350g Optional functions: External infrared remote control External voltage regulation RS-485 communication Single voltage, symmetrical dual voltage

---
