China High Quality CNC Lathe for Machining Railway Wheel Set (CK61200)

Product Description

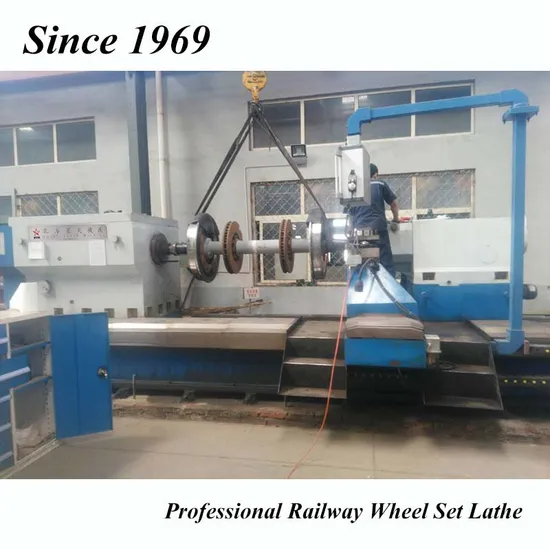

High Quality Professional Railway Wheel Set Turning CNC Lathe Machine
For Turning Tyre Mold,Grooves, Flange,Bearing,Wheel, Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,etc
1. Outstanding Characteristics of CNC Lathe Machine
All components of machine are imported foreign famous brands, such as FANUC or SIMENS Control System/ Schneider Electrical Control system, Japanese NSK Bearing, ABB Motor& transmission box/gear box, etc. We can also configurate per customer's special request and demands. Our Engineers can design different configurations according to different workpieces characteristics.
1.) This kind of lathe can be designed into CNC Milling Lathe also which has functions of Milling and Turning, including screw thread, conical surface, curved surface, internal boring, etc.
2.) This lathe adopts frequency control system as its main drive system; driven by frequency control motor, the speed of main-shaft realizes stepless speed regulating, thus having different speeds to meet rational cutting speed requirements for the machining of different type of work-piece.
3.) This lathe consists of lathe bed, selective headstock, tailstock, blade adapter, electric control system, lubrication system, and so on. Selective headstock and tailstock are installed at the left and right side of lathe bed respectively.
4.) The main shaft can realize stepless speed regulating in a range of 10~300r/min; and the main spindle front bearing adopts high-precision double row cylindrical roller bearings, having high-degree of rigidity and rotary precision and easy to adjust.
5.) High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.

Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Customized Lathe is Our Special Characteristics
Optional Selection:
1. Bearing, Gear Box,CNC Control System can be specified by customer
2. Metal Shield/Flash Guide for Machine can be optional
Application: This is a CNC horizontal roller lathe which is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of other shaft parts.

2. Standard Technical Parameters of CNC Lathe Machine, Horizontal Lathe


Rermarks:
1. The above 5 models of CNC Lathes are the standard configurations, we can also design and manufacture customized lathe according to the user's workpiece features.
2. This series horizontal Lathe Machines have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
Foreign Customer's Praise for our Product and Management
3. After-sale Service and Maintenance of CNC Lathe
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Tag: CNC Lathe Machine, horizontal lathe, cnc machine tool. mechanical lathe conventional lathe. Railway wheel set turning cnc lathe. RAILWAY Industry machine

---
