Flange Facer Portable Flange Facing Machines Resurfacing Pipe and Tube on-Site Pipe/Flange Rtj Grooves Machining

Product Description

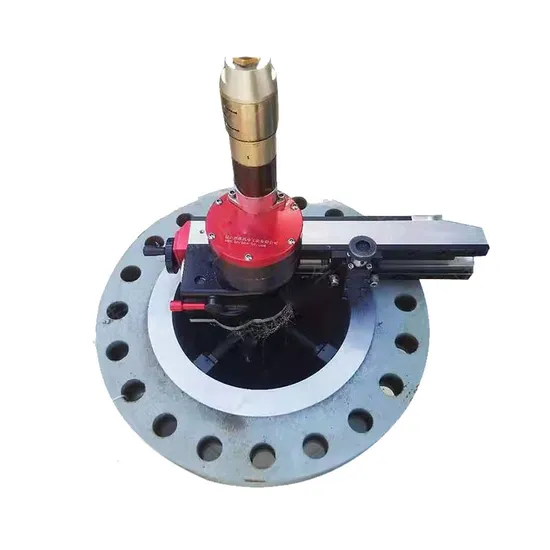

Portable Flange Facing Machine Model CM1500
Portable flange surface processing machine CM610 is mainly used for on-site processing of flange sealing surfaces such as flange smooth surface, water line, straight groove, RTJ sealing groove, lens sealing surface, heat exchanger sealing surface, etc. It can be located at any angle. processing.
Processing material: cast iron, alloy structural steel, stainless steel, aluminum and other metal materials.

Mounting Method	Inner Diameter Mounted CM1500
Motor	4.0 HP
Rpm	10-33Rpm
Weight	50KG
Clamping Range	145-813mm
Processing Range	152-1016mm
Tool Travel Range	102mm

Features: Inner Clamp Installation, High Rigid Support, Suitable Big Cutting processing requirements , High efficiency The tool holder angle can rotate, wide application Two mode selection, Pneumatic or Electric mode Feed Handwheel with scale , accuracy feeding Tool Axial and radial automatic feeding with high precision The tool can be adjusted in 50mm. Surface roughness below Ra 0.8 um Rotating Speed wide adjustable ,meet different processing requirements Horizontal, Vertical, Upside, Tilting all can be installed . Processing Flat face, water line, Groove etc .

---
