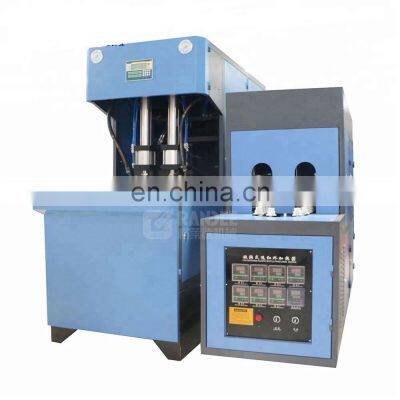

Semi Automatic 600pcs per hour two cavity 5 liters PET bottle blowing molding machine

Product Description

Product Description
Semi Automatic 600pcs per hour two cavity 5 liters PET bottle blowing molding machine )
Product Description
Machine Features:
1.GD-C2 Semi automatic blow moulding machine,is CE standard
2.Produce bottle from 3L to 10L(2 cavity),PET bottle,for mineral water bottles,soda bottles,cola bottles ,and hot fill bottles
3.Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01 second
4.Use infrared heating lamps,penetrating power strong,embryo heated while rotation, orbital revolution,heating uniformity,rapid and reliable
5.Independent Temperature Control for different heating lamp to get ideal preform heating results
6.Each machine has a saftey self-locking device,when a process have problem,the program will automatically switch to a safe state
7.The bottle scrap rate less than 0.2%
8.Operated only by one person without special training
9.Simple installation & startup adjustment
Main machine :
2 Cavity bottle blowing mold
Stretching cylinder
Heating lamp
Operation panel
High pressure compressor with 1.2m³/30KG
Main technical parameter:

Model	GD-C2
Main machine	Product material	PET/PC
	Volume	0.5L-5L(2cavity) 6L-10L(1cavity)
	Theoretical output	600PCS/H for 5L pet bottle
	Preform length	15mm-300mm
	Preform inner diameter	Φ15mm-100mm
	Max. mould plate Dimension(L x W)	450x550mm
	Max.mould thickness	450mm
	Clamping force	120KN
	Mould opening stroke	350mm
	Blowing Air Pressure	<=3.0 Mpa
	Working Pressure	<=1.0mpa
Size and Weight	Main machine (L x W x H)	17575170cm
	Main machine weight	700Kg
	Heater (L x W x H)	18763145cm
	Heater weight	280Kg
	Power	14kw

Detailed Images

	Filling valve: Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.
	RO System Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
	Full automatic sleeve labeling machine Capacity: 100-350bottles/min can be choosed Label material: PVC PET OPS,etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
Automatic L PE Film Shrink Packing Machine shrink film material: PE Maximum packing size: 420300350mm Max. sealing size: 650mm Level of conveyor: 950±30mm Maximum shrink temperature: 160-260℃ Capacity: 8-12packages/min Power: 26KW/16KW Weight: 1500KG

Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
