RM620 Handheld Thermal Camera

Product Details

Product Description

Product Description

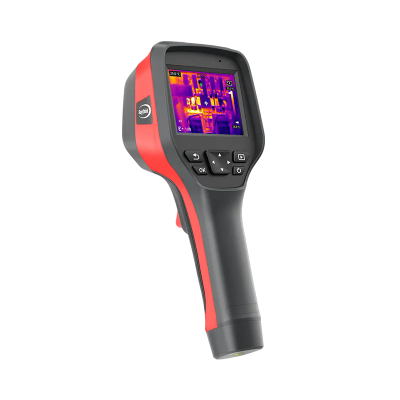

RM620 Handheld Thermal Camera
RM620 is equipped with a 12μm infrared detector, which brings 640×512 high-resolution infrared thermal images and a high sensitivity of 35mK to easily capture small hot spots.
With a temperature measurement range extendable to 650°C, the device is suitable for electric routine inspection, electronic circuit design, HVAC, industrial manufacturing, petrochemical industry, photovoltaic testing, and many other fields.
FeatureHigh-Definition Thermal Images, Capturing Subtle Hot Spots
Equipped with a self-developed 640×512 high-pixel 12μm advanced-technology detector.
Capable of distinguishing 0.035°C temperature difference, IFOV as low as 0.63mrad, easily capturing subtle hot spots.
Smart Upgrade For You To Handle Complexity With Simplicity
Support intelligent shooting, user customization, import and distribution of inspection task packages, simplifying the task process and improving routine inspection efficiency.
Support temperature trend analysis, helping users observe temperature distribution and changes in real time.
Support isotherm function to highlight the temperature segments or areas that need attention.
Support analysis software on the PC client and secondary analysis of video files.
Upgraded Performance For More Application Scenarios
-20°C~+650°C wider temperature range, suitable for more industrial temperature measurement scenarios.
IP54 and 2m drop protection, solid and durable.
Standard 32GB Micro SD card, expandable to 512GB, supporting temperature video recording.
SpecificationThermal ImagingImaging DisplayMeasurement and AnalysisImage StorageVideo FunctionsSystem FunctionsOthers

Detector TypeUncooled infrared detectorInfrared Resolution640×512Pixel Size12μmSpectral Band7.5-14μmThermal Sensitivity (NETD)＜35mK (25°C,F1.0)Frame Rate30HzLens Focal Length19mmFOV23°× 18°Spatial Resolution (IFOV)0.63mradFocusing ModeManual focusingMeasurement Range-20°C~+150°C; 100°C~650°CMeasurement Accuracy±2°C or ±2% of readings, whichever is greater
Display3.5-inch touch screen, 640×480 resolutionVisible Light Camera5 megapixelsDigital Zoom1×, 2×, 4×, 8×Palettes10Image ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchAutomatic/Manual
Analysis Functions on the DeviceCustom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature displaySupporting SoftwarePC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
Storage MediumStandard 32GB MicroSD, up to 512GText NotesSupportVoice AnnotationSupport
Radiation Infrared Video RecordingSupportNon-radiation Infrared or Visible Light Video RecordingSupport
Intelligent Routine InspectionSupportCommunication ProtocolWi-Fi, USBVideo TransmissionSupport UVC video transmissionLaser PointerSupport
BatteryRechargeable and detachable lithium-ion batteryCharging ModeUSB Type-C or desktop chargerBattery LifeAbout 6h (about 3h for a single battery)InterfaceUSB Type-C, SD cardTripod SocketUNC 1/4-20 interface for tripodOperating Temperature-10°C~+50°COperating Humidity10%~95% (non-condensing)Storage Temperature-20°C~+60°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 680g, 258.4×105.1×102.3mmAuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, safety box

Application Scenarios

Circuit Design

Construction Inspection

Electric Routine Inspection

Industrial Manufacturing

Company Profile
Raythink Technology Co., Ltd.
Raythink Technology Co., Ltd. is specialized in innovation and development, manufacturing and marketing of intelligent photoelectric sensing technology. We are deeply engaged in the fields of infrared night vision imaging, thermography, gas imaging and laser sensing, providing professional infrared and laser sensing components, devices, software and smart industry solutions to our global customers. We have also successfully achieved self-development and large-scale production of intelligent multi-dimensional sensing photoelectric products in diverse forms applicable to various fields.Being a solution provider to public sectors, industries, and commercial markets, we provide a rich portfolio of intelligent photoelectric sensing products, which are widely used in the smart industry, smart robots, gas detection imaging, fire fighting and safety, green energy, carbon neutrality, environmental protection, healthcare, etc. Bearing the mission of boosting intelligent photoelectric sensing technology progress, RayThink Technology integrates photoelectricity and smart technology to continuously create incremental value for customers and contribute to building a safe, energy-saving and environmentally friendly society.
