Vertical Drilling/Turning Machinery Metal Taspping Drilling and Milling Machine

Product Description

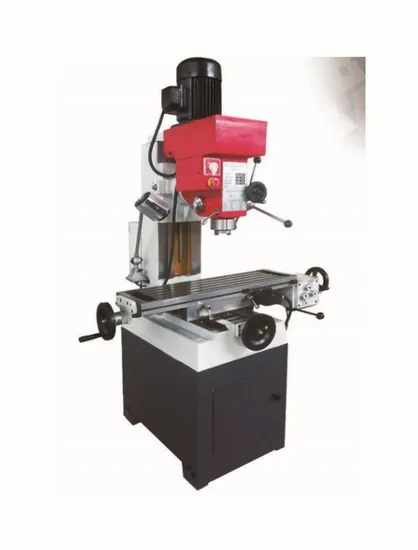

Product Picture

Specification Parameter

Specification	Units	ZX50CF
Face milling capacity	mm	32
Drilling capacity	mm	120
Borring capacity	mm	50
Tapping capacity	mm	120
Table capacity		M16
Table size	mm	800*240
longitudinal travel	mm	450
Cross travel	mm	230
Max.Swing angle of the table
Spindle travel	mm	120
Spindle nose to tabel surface	mm	0-360
Spindle center to column	mm	350
Spindle taper		MT4 ISO30
Spindle speeds	r/min	115-1750
Main motor	kw	1.5/0.85
Overall dimensions(L*W*H)	mm	1200*1100*1850
Net weight	kg	550

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.



Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
