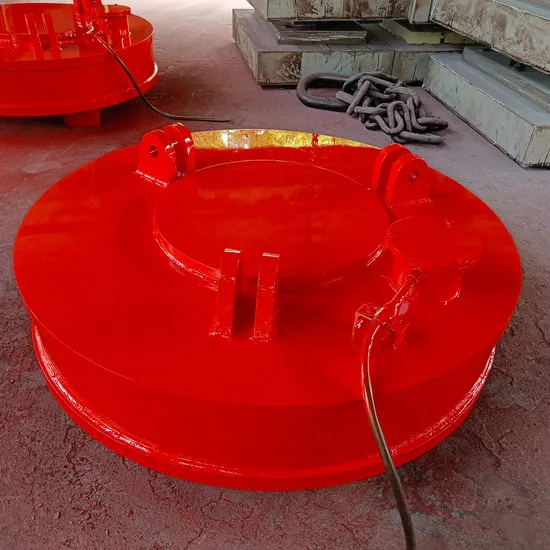

Crane Circular Lifting Magnet for Lifting Scraps

Product Description

Product Description
Lifting magnet is suitable for transporting ingots,steel chips,slabs,steel plates and various kinds of steel scraps.And can be installed on excavator,crane.
Main Features:
--75% or 60% Duty Cycle
--All welded heavy duty construction
--Cool operating
--Class H insulation
--Powerful deep magnetic field design
--Aluminum Coil,Copper Coil optional
--Quick disconnect lead assembly
--Voltages - 220V DC
ShenGang magnets:
· (Circular/square/rectangular), available diameters from 500 mm up to 3000 mm;
· Heat insulated magnets; They are used to move hot cargoes having surface temperature of up to 700° C;
· Magnets for any climatic requirements;
· Magnets with up to 75% duty ratio.
Product Parameters

Model	Electric current (A)	Cold-state power (kw)	lifting capacity (kg) cold/hot state			Mass (kg)	Overall dimension (mm)
			steel ball	cast iron	steel scrap		A	B	C	D	E
MW5-70L/1	15	3.3	2500	380/200	120/100	490	700	800	160	90	30
MW5-80L/1	18	3.96	3000	480/250	150/300	620	800	800	160	90	30
MW5-90L/1	26.6	5.9	4500	650/440	250/200	800	900	1090	200	125	40
MW5-110L/1	35	7.7	6500	1000/800	450/400	1350	1100	1140	220	150	45
MW5-120L/1	45.5	10	7500	1300/1000	600/500	1700	1200	1100	220	150	45
MW5-130L/1	54	12	8500	1400/1100	700/600	2010	1300	1240	250	175	50
MW5-150L/1	71.2	15.6	11000	1900/1500	1100/900	2830	1500	1250	350	210	60
MW5-165L/1	75	16.5	12500	2300/1800	1300/1100	3200	1650	1590	370	230	75
MW5-180L/1	102	22.5	14500	2750/2100	1600/1350	4230	1800	1490	370	230	75
MW5-210L/1	129	28.4	21000	3500/2800	2200/1850	7000	2100	1860	400	250	80
MW5-240L/1	154	33.9	28000	4800/3800	2850/2250	9000	2400	2020	450	280	90

Detailed Photos
Complete set of equipment:
· Lifting electromagnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.
Processing flow and Package:
The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What kind of the materials do you want to lift? Is it for steel scraps or other steel material?
2. Is working site: Indoor or Outdoor? Normal or High temperature?
3. What's information for overhead crane: Single girder or Double girder?Loading capacity?
4. Do you only need magnet or magnet with cable reel and rectification control cabinet?
5.Do you prefer FOB or CIF price,which is the destination port?
(More details, please feel free to contact us directly. )
Other Magnets

Company Profile
Certifications
Packaging & Shipping
FAQ
1. Why customers choose us?
We are a professional lifting magnet,cable reel and se[arator products manufacturer with 19 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
2.What is your payment terms?
Our payment is 30% T/T deposit,70% balance before factory delivery.

3.How long is your delivery time?
A:Standard model is within 10 workdays after deposit confirmed.
Customerized model will depend on actual production needs.

4.What is the total cost of freight?
Please provide your port of destination in order to give accurate freight.

5.Can I have product with our design and nameplate?
Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.

6.What is your warranty and after service?
Our product is with 12 months warranty from delivery. We also support engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.

---
