Water Supply System Pump Equipment for Fire Fighting

Negotiable 1 set (MOQ)

Basic Info.

Model NO.
WZG
Max.Head
110m-150m
Max.Capacity
>400 L/min
Pressure Medium
Water
Type
Water Pump
Position of Pump Shaft
Vertical Edge
Certification
CE, ISO
VFD
Optional
Pump Quantity
2-4 Sets
Material
SS304/ SS316
Transport Package
Marine Wooden Case
Specification
ISO Standard
Trademark
Pacific Pump
Origin
Shanghai
HS Code
84131900
Production Capacity
100 sets/year

Product Description

Summary:

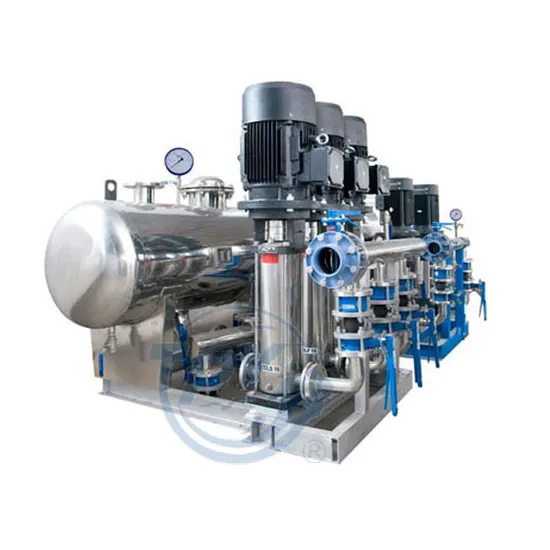

DRL series constant pressure frequency conversion water supply system is composed of newest great performance PID frequency conversion controlling cabinet and more than 2 pumps. It is the top technical water boosting equipment, which can automatically adjust to satisfy the requirement of constant pressure, variable water demand. The pressure of water supply net can be kept constant. The whole water supply system can be at best effective, energy saving, perfect status. There are two ways of water supply, they are frequency convention water supply and pressure water supply. Frequency water supply is automatically adjust the rotation speed of one pump or run/stop one or more pumps, which is the best water supply way to keep the water supply net to be stable. It is easy to use.
Features:
1. Solve the low pressure problem: Use the constant pressure, frequency conversion water supply system to keep the pressure stable of the whole building.
2. To avoid the pollution of the tank on the top of the roof. It takes place the traditional roof tank water supply way, erase the source of water pollution.
3. Deduce the building cost, enlarge the square: It erase the traditional roof tank, less the force of the building, simple structure, cost deduced.
4. Energy saving, deduce the space: It can save energy more than 30%, compared to normal water supply equipment. It occupy little space, easy to install, shorten working period.
5. High quality, PC controls: Invented by us, have multi-function, can supply high standard precise control. It is arrived to the advance level in the world.
Main application:
Residential water supply: High building, residential area, villa, etc.
Public places: Hospital, university, gymnasium, golf course, airport, etc.
Commercial building: Hotel, office building, department store, large-scale sauna center.
Irrigation: Park, playing round, garden, farm, etc.
Manufacturing industry: Manufacturing, lavation equipment, food industry, factory, etc.
Working Condition
Convey liquid: Cold, warm, clean, non-flammable, non-explosive liquid, not consisted of solid grain or fiber.
Medium temperature: Normal temperature type -15 deg C to +70 deg C; Hot water type + 70 deg C to + 120 deg C;
Ambient environment: No drop, vapor, no floating dust or metal grain. No sunshine, hot temperature, heavy dust. No corrosive, non-flammable gas or liquid.
The equipment should be placed in no vibration place and in the place where it is easy to check.
Ambient temperature: Max +45 deg C, ventilated
Technical Details:
Item Constant pressure VFD water supply equipment
Pump material Stainless steel
Size Light , small
Type Vertical or horizontal
Drive VFD
Pressure Constant
Theory Centrifugal pump
Character High pressure, multistage
Usage Building , hotel ,hospital or domestic booster
Power Electric
Standard or Non Standard
Shaft Stainless steel
Capacity 0.4-1080 m³/h
Pressure‹H› 6- 305 m
Power 0.37-75kw
OEM Acceptable
Valves Butterfly valves, check valve
Pipe material Stainless steel or cast iron
Gauge Pressure gauge
