China Factory Sale ASME Standard 40t Pressure Vessel Tank for Gas Station

Product Description

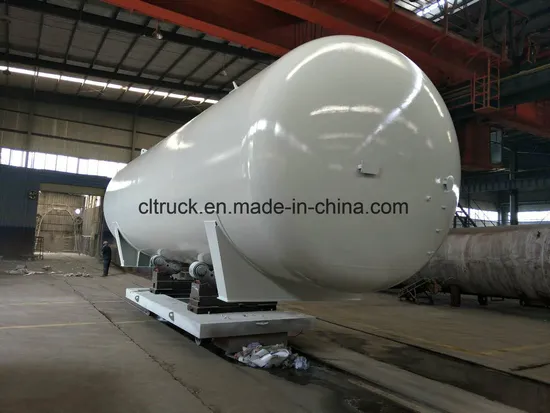

China Factory Sale ASME Standard 40t with 80000L gas Pressure Vessel

Name	China Factory Sale ASME Standard 40t with 80000L gas Pressure Vessel
Model	CLW9400
Medium	Liquid Petroleum Gas, 420-580kgs/M3
Tanker size	Mm	11508*2428*3018
Volume	M3	5-120
	Kg	12000
Design pressure	Mpa	1.77
Working pressure	Mpa	≤1.6
Working temperature	°C	≤50
Water pressure test	Mpa	2.22
Sealing test	Mpa	1.77
Material	Q345R,16MnIII(Tanker and the main pressure parts)
Work standard	LPG GB150 Steel pressure vessel, pressure vessel technology to monitor the safety regulations
Choose parts	Pressure relief valve, magnetic flap gauge, pressure gauge, thermometer, valve, etc.

More size for reference

	Volume (cbm)	DN (mm)	Thickness (mm)		Quality(kg)		Overall Dimension(mm)
			Shell	Head	Tank	Filling
Filling Medium liquid amonia Pressure 2.05MPa Corrosion Allowance 2mm Medium Density520kg/m2	20	2100	16	16	6400	9880	6162x2132x2710
	25	2100	16	16	7760	12350	7762x2132x2710
	32	2400	16	16	8920	15808	7516x2432x3010
	50	2400	16	16	13100	24700	11516x2432x3010
	50	2800	20	20	14470	24700	8620x2840x3420
	80	2800	20	20	20980	39520	13520x2840x3420
	80	3200	22	22	21710	39520	10524x3244x3830
	100	2800	20	20	26010	49400	16740x2840x3420
	100	3200	22	22	26190	49400	13024x3244x3830
Filling Medium Dimethylether Pressure1.15MPa Corrosion Allowance 1.5mm Medium Density580kg/m2	50	2700	10	12	8620	27550	9174x2724x3310
	65	2700	10	12	10480	35815	11824x2724x3310
	80	2700	10	12	12280	44080	14454x2724x3310
	80	3200	12	12	13080	44080	10504x3224x3810
	100	3200	12	12	15560	55100	13004x3224x3810
	120	3400	12	14	17940	66120	13808x3424x4010
Material of tank and main pressure parts			Q345R/Q370R
Standard			GB150 TSG R0004-2009
Safety valve of selection fitting			Safety valve, column magnetic reversible level meter, pressure gauge, thermometer, cut-off valve

2. Packaging & Shipping
1, Naked or waxed before on board.
2, Delivery time: 30 days after receiving payment in advance.
3.By RORO,BY Container or Bulk ship.
3.Company Information
ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness. Our company has independent export authority, and has a lot of overseas clients. Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.

l More than 15 years' experience as a manufacturer
l Competitive Price and Excellent Quality
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 300 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
4. Our warranty
1.We are MIC Trade Assurance Gold Supplier.
2.We are a factory manufacturing all kinds of special purpose vehicles,best production capability ,best quality control, best Service .
3.We have long-term cooperation with Shanghai Shipping Company with on time, safe and reliable shipping.
4. Our company can handle a variety of crelated certification of vehicles according to your needs.
5.100% QC inspection Before Shippment.
6.Our products meet OEM/ISO9001/CCC certifications,competitve price.
7. Warranty:1 year or 12 months.
5. Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
6.Our main products:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
