Rubber Belt Used for Mining Conveyor System

Product Description

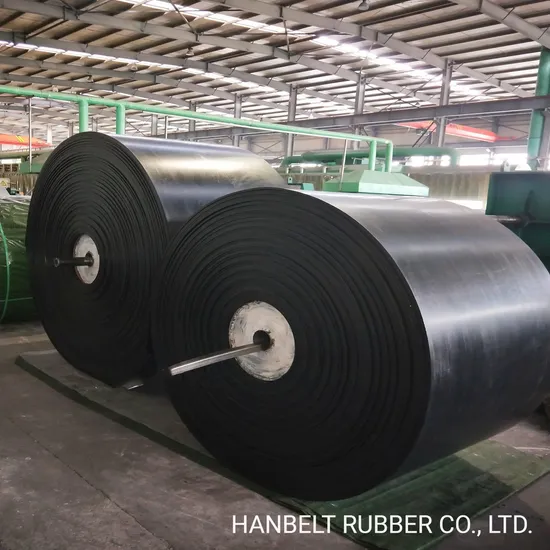

Multi-ply Fabric EP/NN Conveyor Belt
Structure and classification
The multi-ply fabric conveyor belt is composed of cotton canvas, nylon or polyester canvas as tensile body, and top and bottom covering rubber with various properties
Multi-ply fabric conveyor belt can be divided into cotton canvas (CC) conveyor belt, Nylon (NN) conveyor belt and Polyester (EP) conveyor belt according to different tensile layer materials
(1).Cotton canvas (CC) conveyor belt: A traditional conveyor belt, suitable for medium and short distance conveying materials.
(2) .Nylon (NN) conveyor belt: good elasticity, high strength, impact resistance, bending resistance, good flexibility, good grooving performance, small elongation, It is suitable for medium and long distance, high load and high speed conveying materials.
(3).Polyester (EP) conveyor belt: high modulus, small elongation, good heat resistance, impact resistance, It is suitable for medium and long distance, high load and high speed conveying materials.
1.Standards:
DIN221029Z,W,Y,X), BS490, AS1332(N17,M24), RMA(I, II), JISK6322, SABS1173 (A,C,M,N) etc .
2.Features:
Nylon conveyor belt and EP conveyor belt are also called high strength conveyor belt because of their high strength of framework materials. They have the characteristics of high strength, impact resistance, good performance, high adhesion strength between layers, excellent flexibility and long service life. They are suitable for medium and long distance, high load and high speed conveying of materials
3.Application:
Applicable to long-distance, high capacity, high-speed delivery of materials under the conditions.
Used in mining, quarries, chemical plants, architectural industry and etc.it is used for material transportation in chemical industry, electric power, metallurgy, light industry, grain processing, coal mine and other industries.
4.Technical Parameter
Conveyor Belt Parameters

Fabric specs	Ply thickness (mm/p)	Strength series (N/mm)					Cover Thickness (mm)		Width	Length
		2ply	3ply	4ply	5ply	6ply	Top	Bottom	mm	m
EP80	0.60	160	240	320	400	480	2.0--8	1.5--4.5	400-2500	100-300
EP100	0.75	200	300	400	500	600
EP150	1.00	300	450	600	750	900
EP200	1.10	400	600	800	1000	1200			500 -- 2500
EP250	1.25	500	750	1000	1250	1500
EP300	1.35	600	900	1200	1500	1800
EP350	1.45		1050	1400	1750	2100			800 -- 2500
EP400	1.55			1600	2000	2400			1000 -- 2500
EP500	1.70			2000	2500	3000

Specification
Cover Rubber Grade	8MPa,10MPa,12MPa,15MPa 16MPa,17MPa,18MPa,20MPa,24MPa,25MPa	DIN22102(Z,W,Y,X) AS1332(N.M),RMA (I, II)SANS 1173(A,C,M,N),Accepted customization according to the requirements of customers.
Belt width (mm)	500,600.650,700,800,1000,1200 1400,1500,1800,2000,2200,2500	18",20",24",30",36",40",42" 48",60",72",78",86",94"
Tensile strength	EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6	330PIW, 440PIW
Top+Bottom thickness	2.5+1.5,3+1.5, 4+1.5,4+2, 4+3, 5+1.5,5+3,6+3	3/16"+1/16", 1/4"+1/16"
Belt thickness	3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,18mm,20mm,25mm
Belt length	10m,20m,50m,100m,200m,250m,300m,500m
Belt edge type	moulded(sealed) edge or cut edge

5 Product inspection control system
We have a modern large R & D and quality inspection center, and the center has six rubber material laboratories, including material test, formula test, rubber mixing test and finished product test. 126 management and technical personnel are engaged in product research and development and quality inspection. From raw materials to finished products, each production step is tested with advanced test equipment, which ensures the reliable and stable product quality.
6.How to choose conveyor belt
1. Accurately describe the name and nature of specific materials. In particular, particle size, temperature, acid, alkali and other corrosive and special requirements. Please explain if there is a temperature requirement, .
2. Explain the specific application situation and specifications (width, length, number of layers, thickness, etc.), especially the service temperature and loading capacity of heat-resistant conveyor belt.
7.How to transport and store conveyor belt
(1). During transportation and storage, the conveyor belt should be kept clean, avoid direct sunlight or rain and snow, and avoid contact with acid, alkali, oil, organic solvent and other substances, and be one meter away from the heating device.
(2). When the conveyor belt is stored, the warehouse temperature should be kept between 18-40 ºC and the relative humidity should be kept between 50-80%.
(3)During the storage of the conveyor belt, the products shall be placed in coils, not folded, and the conveyor belt shall be turned over once a quarter.

FAQ

Q1. Are you a manufacturer?
Yes, we are manufacturer of various conveyor belts,our factory is located in Shandong Province, China. We have 6 large workshops with 2000m2,10 advanced conveyor belt production lines.
Q2. What is the lead time?
10 days for bulk order production.
15 days for 20"container order production.
20 days for 40" container order production.
Q3. How to pay?
T/T or L/C through bank account
Q4. How about package?
1.Usually the packaging is PVC seaworthy plastic film, We can pack according to the packing material and color required by customers.
2. With Iron roller core
Q5.Do you accept customization?
Yes, we accept customization, can design and produce conveyor belt products meeting customer requirements according to customer requirements, and can also paste the trademark designated by customers.
Q6.Do you provide conveyor belt samples?
Yes, We can send conveyor belt samples to customers.
Free samples shall be controlled within one meter, and the freight shall be paid by the customer.

---
