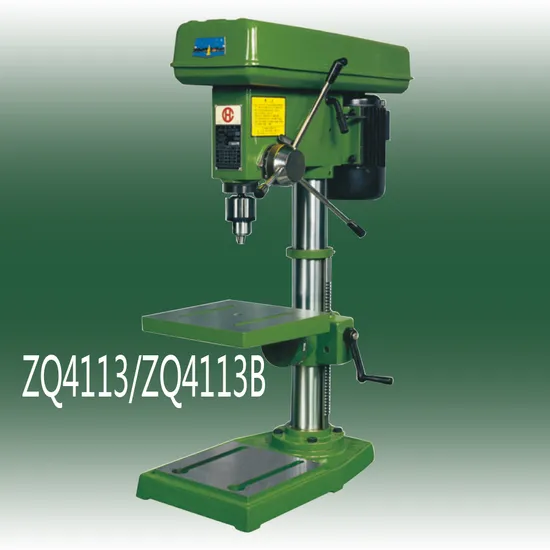

High Speed Light Bench Drill Zq4113 Table High Precision Drilling Machine Maximum Diameter 13 mm

US$396.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZQ4113
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
370W
Max Drilling Capacity
13 mm
Transport Package
Wooden Case
Specification
92*52*28cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300

Product Description

Model ZHX-13 ZQ4113II/ZQ4116II ZQ4113/ZQ4113B ZQ4116/ZQ4119 ZQ4125/ZQ4132 ZQD4125/ZQD4132
Max.drilling capacity 13mm 13mm/16mm 13mm 16/19mm 25/31.5mm 25/31.5mm
Diameter of column 48mm 73mm 70mm 70mm 85mm 85mm
Spindle travel 50mm 85mm 85mm 85mm 110mm 110mm
Distance spindle axis to column surface 103mm 165mm 180mm 180mm 200mm 200mm
Max.distance spindle nose to worktable 220mm 328mm/390mm 318mm MT.2:432mm(B18:400mm) 485mm 490mm
Max.distance spindle nose to base 300mm 488mm/562mm 475mm MT.2:592mm(B18:560mm) 670mm 1240mm
Spindle taper B16 B16/MT.2 B16 MT.2 or B18 MT.3 MT.3
Spindle speeds range 515-2580rpm 420-2800rpm/210-2900rpm 450-2650rpm 400-2420or270-2880rpm 200-2260rpm/150-2270rpm 200-2260rpm/150-2270rpm
Spindle speeds 5 5/12 5 or 12 9/12 9/12
Dimension of worktable surface 165x162mm 230x230mm/250mm 240x240mm/300mm 240x240or 300mm 280x280 or 360mm 280x280or 360mm
Dimension of base worktable surface 140x178mm 210x210mm 220x220mm 220x220mm 300x300mm 300x300mm
Overall height 581mm 825mm/890mm 858mm 956mm 1109mm 1680mm
Motor (1 phase)150or 180(3 phase) 250W(1 phase)or370W(3 phase)/370W 370W 370W/550W 550(1 phase)or750(3 phase)W 550(1 phase)or750(3 phase)W
G.W/N.W. 23/21kg 43/40kg/47/44kg 62/59.5kg(ZQ4113B) 62/59kg 110/107.5kg 125/120kg
60/55kg(ZQ4113)
Ship measurement 47*33.5x24.5cm 80x46x23cm 92x52x28cm 92x52x28cm 110x77x34cm 110x77x34cm
