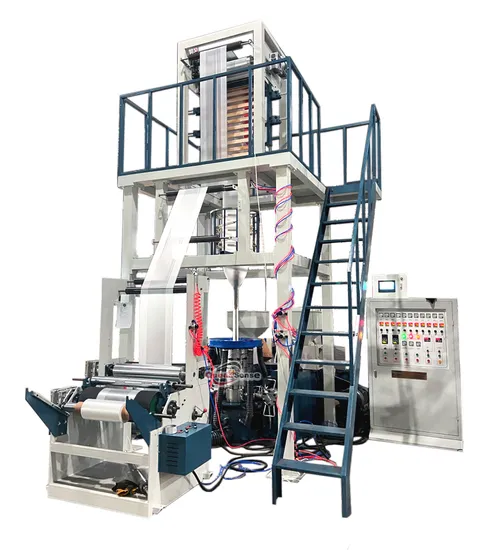

QS-ABA600 ABA Three Layer Film Blowing Machine High Speed Film Blowing Machine

Product Description

PRODUCT INFORMATION
Model: QS-ABA600-1200
Product Name: ABA film blowing machine
Film Width: 100-1200mm
Introduction :
ABA co-extrusion film blowing machine enjoys advantages in producing HDPE, LDPE and LLDPE material. The strength of plastic film is improved by co-extrusion. Besides, with only two extrusion units, this model achieves function of three layer film blowing machine. One unit deals with inner&outer layer, while the other deals with inner stuffing layer. In this way, costs are reduced and energy is saved. Meanwhile, to enhance market competitiveness of customers, it's possible to add recycled material and CACO3 into inner puffing layer at the rate of 80% of full amount.

Model	QS-ABA600	QS-ABA800	QS-ABA1000	QS-ABA1200
Suitable material	HDPE/LDPE/LLDPE/CACO3
Film width	100-600mm	200-800mm	400-1000mm	600-1200mm
Film thickness	0.01-0.15mm
Max.Extrusion output	50kg/h	70kg/h	100kg/h	120kg/h
Screw diameter	45/50mm	50/55mm	55/60mm	60/65mm
Main motor	11/15kw	15/18.5kw	18.5/22kw	22/30kw
Air ring	620mm	780mm	780mm	780mm
Die size	60mm	80mm	120mm	160mm
Air blower	3.7kw	5.5kw	7.5kw	11kw
Roller width	700mm	900mm	1100mm	1300mm
Machine size	4.8m*3.0m*5.0m	5.2m*3.5m*5.2m	5.6m*3.8m*5.8m	6.0m*4.0m*6.0m
Machine weight	2000kg	3000kg	4000kg	5000kg

Product information:

Team and Work:

Packing:

Exhibition:

FAQ:
A. When your company was found?
B. Our company was found on 2010 , our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia ,we accept 100% L/C at sight.
Delivery time: Standard will be in 30-40 working days
A.What Technical Support we can get if order machines
B.We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.
A. When your company was found?
B. Our company was found on 2010 , our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia ,we accept 100% L/C at sight.

---
