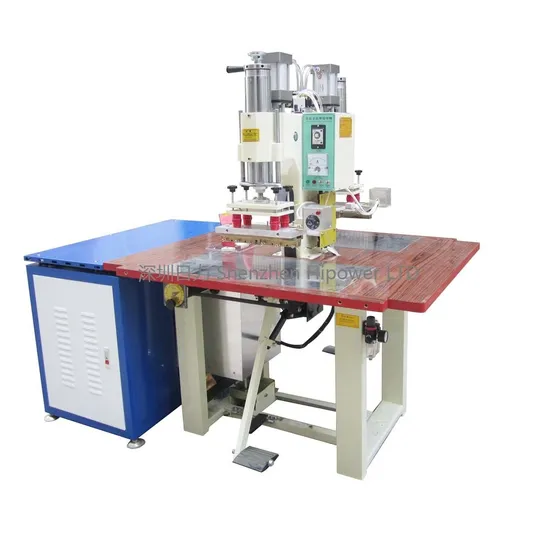

Radio Frequency Welding Machine for TPU Emblem Trademark Logo Embossing

Product Description

Product Description Working Principle:
High Frequency welding is using the high frequency electromagnetic waves to heat and Soften the join of certain plastics which have chemical dipoles, such as PVC, PA and acetates.
When a press/die descents to apply pressure on the surface of two pieces of material, The high frequency wave are passed through the die and table. The high frequency field Causes the molecule to vibrate and generate heat from vibration. The process can be Continuous and able to perform localized heating.
Application:
Toy stationery industry such as: Gift bag, basketball embossing, phase thin, album, name card, welding, mouse pads, lens box welding&embossing, etc; Leather leather bags industry such as: Leather, leather welding, embossing, fusing and towel bag embossing, etc;
PVC door MATS embossed, door MATS welding, plastic door MATS embossing, carpet embossed, mat welding, pads embossing, cushion embossing and s-type pads welding, electric car ottomans embossed, pads welding, locomotive cushion, seat welding etc;
Automobile interior trim products: Steering wheel covers, anti lattice thermal bonding, reflective stick thermal bonding, reflective film thermal bonding, automobile cushion, cushion, pads welding, back of a chair, pads embossing, etc;
Other industries: Life jacket, drifting boat, drifting boat, curtain, shower curtain, gas pool, pool, mattess, , inflatable sofa, water bag etc.
Machine General Features:
The Dual-Head or Two-Head High Frequency machine are usally used to weld products that are hard to position.
They are operated with a pedal, the welding time and welding pressure are adjustable.
The machine is equipped with a self-protection system which will stop the hi frequency when overleaded to avoid damage to the mould and to the material
Product Parameters

Model	HR-5000TA	HR-8000TA	HR-10KWTA
Power	5KW	8KW	10KW
Voltage	3phase 380v 50Hz or customize
Frequency	27.12MHz		13.56MHz
Input power	8KVA	15KVA	18KVA
Rectifier	silicon diode
Oscillation tube	8T85RB	7T69RB	E3069
Max pressure	350kg	350kg	350KGS
Operation mode	Pneumatic
Max distance of electrodes	200mm
The moving distance of active horn	100mm
The size of upper electrode	120*290mm	120*290mm	300*400MM
The lowwer of lowwer electrode	350*700mm	350*700mm	400*800MM
Welding time	0.01~9.99s
Net weight	380kg	380kg	450kg
Overall dimension	1300*1220*1860mm	1300*1220*1860mm	1300*1220*1860mm

Company Profile Who We Are:
Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology support,customer-oriented service and competitive price.Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....What we do:Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts Tarpaulin, BigCovers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box, and other plastic welding industries.
Packaging & Shipping

---
