Xh7132 Hobby CNC Milling Machine Fanuc Control Price From China

Product Description

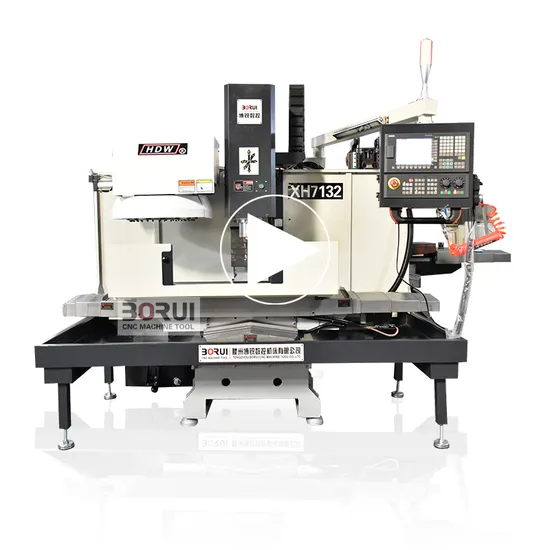

XH7132 Hobby CNC Milling Machine Fanuc Control Price From China
Product Description The machine feature and specification .
1.The machine has good rigidity, convenient and flexible operation, the machine could Vertical milling and drilling expansion can be boring and tapping ,have wide using range, especially suitable for processing all kinds of complicated shape of two 3d concave and convex mould and complex of the surface of the cavity and more suitable for batch processing ,Suitable for high precision mould car ,locomotive, aerospace instrumentation Light industrial textile electronic apparatus, and machinery manufacturing industries such as processing of small and medium-sized box cover plate shell plate parts
2.Machine base, column, spindle box, table and other basic parts, all adopt high-intensity Lost Foam molding technology, the internal microstructure stability, to ensure that the basic pieces has high stability. Casting structure through the machine dynamics analysis and finite element analysis, geometric structure to make it more reasonable, and the appropriate combination of ribs to ensure the high stiffness of the basic parts. Wide machine bed base, full load support design, to ensure that the heavy load when processing capacity.
3. high-speed high-rigidity spindle unit combined with the servo spindle motor; X / Y / Z using high-torque servo motor.
4.X / Y / Z adopt Taiwan's high-precision and high-strength ball screw with a pair of special ball screw bearings and high precision imported locking.

Main technical specifications of cnc milling machine:

Table size	1000×320mm
Maxtable lo	400kg
T slot qty-width*distance	3-14x105
spindle speed	8000 rpm
spindle nose to table surface	100-600mm
Spindle nose to table surface(mm)	415mm
Spindle taper	BT40
Main motor power	3.7kw (servo)
X axis travel	600mm
Y axis travel	400mm
Z axis travel	500mm
X/Y/Z axis rapid feed	48/48/36m/min
Positioning accuracy	±0.008mm
Repeatabeility accuracy	±0.005mm
Net Weight	3000 kg
Overall Dimension	1900X1620X2000

The main machine tool parts

Serial number	Name	model	Origin	Quantity
1	Spindle unit	BT40	Taiwan posn	1
2	Pressed cylinder		Taiwan Haocheng	1
3	ATC	16	Taiwan okada	1
4	X Ball Screws		Taiwan Hiwin	1
5	y Ball Screws		Taiwan Hiwin	1
6	Z Ball Screws		Taiwan Hiwin	1
7	guide	X, Y,Z all is linear way	Taiwan Hiwin	3
8	Cooling the pump	PMY-25-5	china	1
	Lubrication system	Single wire damping	Taiwan Hurun	1
10	Pneumatic system		Taiwan Airtac	1

Standard configuration: 1.The CNC system: KND
2.The knife: The famous Taiwan bamboo hat knife.
3.The unclamping cylinder: Taiwan Shangpin
4.The weight: Wuxi Xieqing nitrogen balance
5.The high quality castings: Resin sand casting
6.The spindle: Taiwan famous high speed spindle
7.The screw: HIWIN
8.The bearing: Japan NTN
9.The Internal protection: Total protection
Select the configuration:
1.M70B/M70A Mitsubishi FANUC 0i mate MD
2.The CNC dividing head
3.The taiwan famous brand manipulator knife storehouse
4.NC rotary table
5.The chip cleaner
6.The fourth axis
Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
