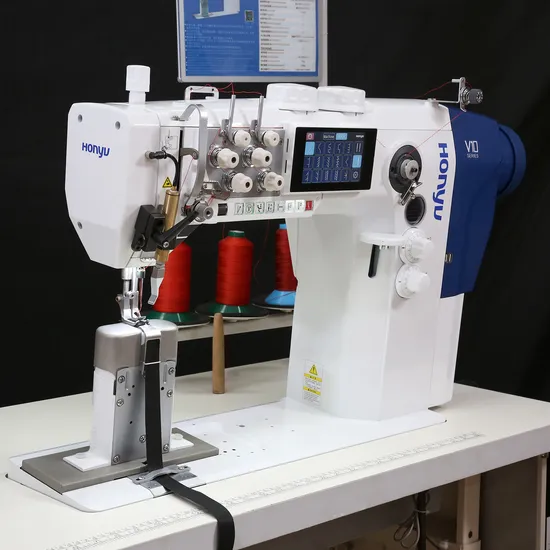

550-V10-498630 Direct drive double needle car seats and sofa heavy duty sewing machine

Product Description

Walking foot decorative industrial sewing machine, post bed sewing machine
550-V10-498630 Program control,post bed, double needle ,pattern decoration sewing machine

Model No.	550-V10-498630
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	800 s.p.m
Shuttle diameter	Ф32mm
Applied needle	DP×17 #18-#23
Needle quantity	2
Height of post bed	172mm
Thread size	Maximum thread 12 strands nylon
Max stitch length	12mm
Max alternating presser foot	9mm
Max presser foot lifting height	20mm
Auto trimming	--
Auto back tacking	√
Presser foot lifting height by air	√
Auto oil system	√
HP function	√
Halving positioning device	Front pneumatic split
Operation space	351X 297mm
Multi-grade adjustable LED light	√
Electronic handwheel	√
LED touchscreen	5.1 inch
Function short-cut buttons	2
Function-related can be set	√
Double stitch length switch quickly	√
Pneumatic compensation thread clamp	√
Double stitch length switch quickly	√

Product Description
1.Programmable post bed double needle decorative heavy duty sewing machine without automatic thread trimming device,equipped with XXL hook (Ф32mm),12mm large needle stitch,automatic back tacking,automatic presser foot lifting and other functions.
2.Typical application area:The sewing operation of thick thread decorative topstitch in the filed of home decoration furnishings.
Product Advantages
LCD dispiay screen
1.Adopting LCD touch screen for a more convenient and intuitive human-machine interface,Upgradable 10 inch large screen for full internet of Things functionality.
2.Bulit in hundreds of commonly used single and double needle patterns,you can switch patterns through the touch screen selection,and the operation is simple.
3.Installing one needle can expand more fancy stitching.
IOT function (optional)
1.The IOT version of the model can support production data upload and operation instruction download,connecting with the systems such as MES,APS,WMS,it can provide customer with basic production equipment to bulid intelligent factories;
2.It can alarm technician,administrative staff and QC staff in real time,and it is an important tool for rapid response in the production process.
Function association customization
1.In HP function mode,you can select electronic control mode,self-locking and constant stitch mode,HP function is associated with the compensation thread clamp;
2.Selecting the CP function is associated with the presser foot lifting function,when the HP function is turned on,the compensation clamp will also be activated;
3.According to the habit or demand,flexibly setting function relevance improves automation.
Larger operation space
351*297mm, the larger operation space facilitated the handling of large-area workpieces.
Multi-function button group
Electronic handwheel, back tacking, cancel back tacking, transform instantaneously internal and external presser foot alternating amount, stitch compensation, compensation thread clamp, double stitch length switch quickly, pneumatic halving device and safe threading mode are satisfied with various usage scene.
Safe threading mode
Adjust the needle to the height which is most suitable for threading, and lock all functions of the machine to avoid personnel injury caused by misoperation during threading.
Electronic handwheel
The operator can easily turn the upper shaft(moving the needle rod up and down) using the electronic handwheel instead of manually rotating the handwheel.
Typical Field of Application
It's applied in normal sewing for car seat interiors and soft furniture like sofas.
