CNC Precision Whirling Machine for Processing Worm Shafts of Power Window Motor

Product Description

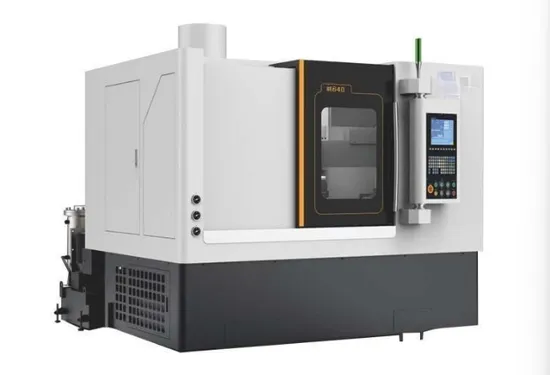

PH 40-A CNC whirling machine

Summary:
PH40-A CNC whirling machine is fully automatic machine designed for machining small
precision warms, with the mass machining accuracy up to 5-7 level of GB/10089-1988 and surface
roughness up to Ra0.6. This machine is characterized with good stability strong adaptability and simple
operation, can achieve the production mode of one-person and multi machines.
Features:
The machine is integrated with programmable modules and sample operations. Milling instead of grounding, one-step shaping. Machining precision Is up to 5-7 level of the International GB/10089-1988. The surface roughness of machining parts Is up to Ra0.6. Hold 3 digits after the decimal point for spiral angle numbers Constant temperature filtration and cooling system and oil mist collection system to guarantee satisfactory working environment and improve machining precision and stability, Auto chip removal device, easy operation and user friendly Auto material delivery device, unmanned processing is realized, lost is reduced and efficiency is improved Full protection structure design Is adopted for machine protection, easy and safe operation.
Technical parameters:

Controller	SYNTEC
Spindle type	Customized by CNC whirling machine factory
Spindle max bore	Φ42mm
Spindle max speed	120 r/min
Spindle driver	Servo driver+full closed loop+DD motor
X axis maximum stroke	100mm
Z axis maximum stroke	250mm
X/Z axis rapid speed	10m/min
Whirling head spiral angle	0-20
Whirling head speed	3000-8000m/min
Whirling head power	55KW
Weight	3000KG

---
