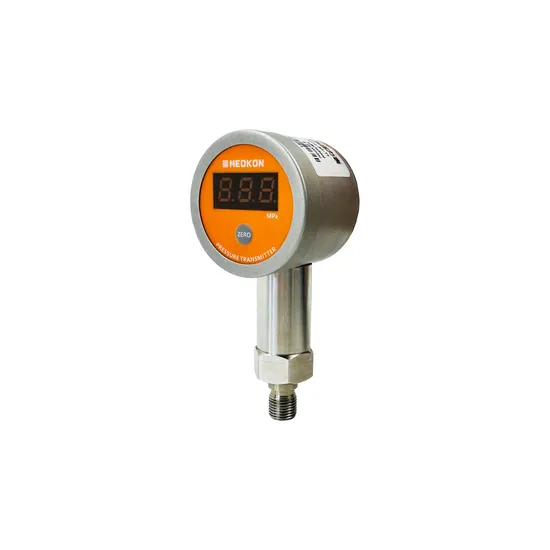

MD-S540 270 Rotated Digital Remote Pressure Gauge on Fire Extinguisher

Product Description

Product Description
MD-S540 series digital remote pressure gauges use RS485 remote transmissionsignals. This series of remote pressure gauges uses three-digit display to display thepressure value in real time. At the same time, the pressure signal can be transmittedremotely, and the transmission distance is better than 500 meters.
This series of digital remote pressure gauges has a built-in pressure sensor withexcellent accuracy. lt adopts 304 stainless steel shell and joints, excellent workmanshiphigh cost performance, and has a very wide range of media applicability. The IP54protection level of the whole machine, the watch body supports 270° rotation angle, andthe dial orientation can be adiusted at any time.
This product can be used to replace the traditional pointer remote pressure gauge orpressure transmitter.
APPLICATION:
Gas fire extinguishing tank monitoring

TECHNICAL PARAMETERS:

Range	6/16/30MPa
Overload Capacity	120%
Display	LED display
Response times	<2ms
Accurate	1%FS
Long-term Stability	0.5%FS/year
Power supply	12~28VDC
Output	RS485
Working temperature	-20~80°C
Electrical protection	Anti-frequency interference design
IP rate	IP54
Testing medium	Gases or liquids that are not corrosive to stainless steel
Connection	M10*7
Shell materials	304SS

de
A

WNG DEFINITION:a
WIRING deWIEIDEFINI

---
