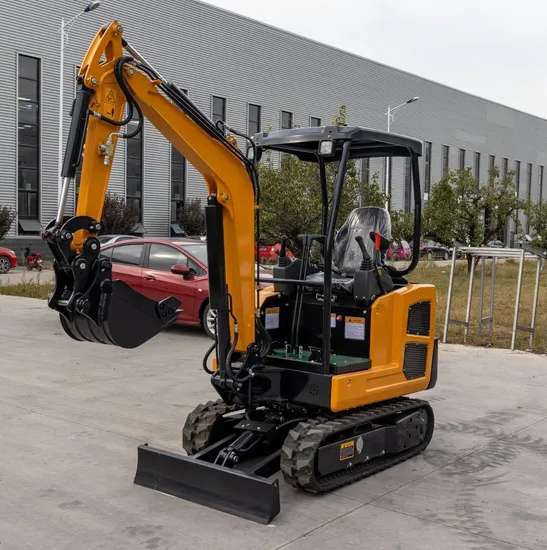

Wholesale Chinese Factory CE Digger Micro Small Excavator for Sale

Product Description

Product Description

ENGINE
Brand	Laidong/Import Kubota
Model	HT18
Power /Rotation speed	18.4kw(25HP)@2350rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	3.5km/h
Width of track shoe(Rubber & steel track)	230mm
Number of track shoe per side(Steel track only)	38 pcs
Number of upper roller/ bottom roller(per side)	0/4
PERFORMANCE PARAMETER
Standard bucket capacity	0.06m³
Swing speed	10~12 rpm
Max. Grade ability	35°
Max. Bucket digging force	14KN
Max. Arm digging force	10KN
Hydraulic system pressure	18Mpa
Machine weight	1800kg
MACHINE SIZE
Overall dimension (L*W*H)	3865mm*1050mm*2270mm
Axle base(Track length on ground)	1230mm
Track gauge	820mm
Min.Ground clearance	210mm
Swing radius at tail	1125mm
WORKING RANGE
Max. Digging height	3365mm
Max. Dumping height	2385mm
Max. Digging depth	2050mm
Max. Vertical digging depth	1725mm
Max. Digging radius	3860mm
Min .swing radius	1720mm
Max. Lifting height of blade	230mm
Max. Cutting depth of blade	275mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

Logo and machine customized	Yes
Engine	Koop/Briggs&stratton/Kubota
Warranty	One year
Color	Can be customized
Package	Wooden box
Accessories	Optional

Factory price mini digger excavator machine/Chinese Mini crawler excavator

1.High fuel efficiency, super power
2.Small Machine Big Savings,high configuration, superior performance
3.Protect the environment. customized color, red, yellow, blue, black etc...
We are factory, also have 1ton, 1.2ton, 1.5ton,1.8ton, 2ton, 2.2ton, 3ton, 3.5ton, 6ton,6.1ton,6.6ton,7.5ton,8ton,9tonetc....
We also have a lot of accessories, including:Narrow,Rake,Ripper,Grabber,Automatic hydraulic hitch,Semi-automatic hydraulic hitch,Auger,Title buchet,Plain bucket,Thumb bucket,Break hammer,Thumb clip,Fork etc...all are factory direct prices.
24-hour internet online:
contact us:
Kata Yang

Packaging & Shipping
For one set it will be packed by wooden box,for large quantity such as 5sets,this can ship by 20'GP container.40'HQcan hold 12 sets .
REMARK:
Payment method:T/T 30% deposit,balance before of shipment.
Payment options:the customer can pay by Credit Insurance, can pay by bank.
Quoting principle:FOB Qingdao,valid for 30 days.
