Product Details
Product Description
Product Description

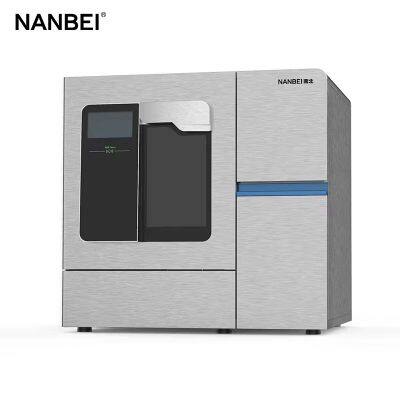

Lab furniture double layer automatic glassware bottle washer
Double-layer container load; two water sources, tap water and pure water; able to meet the requirements of the post-processing of small batch containers in the laboratory. It is an ideal choice for laboratory customers with limited budget and limited space for vessel processing.
7-inch color display and glass touch screen are easy to operate. Equipped with a sturdy drop-down glass window door, the cleaning room can be observed during operation, with a built-in hot air drying device. This cleaning machine is specially designed for laboratories (such as R&D and quality inspection laboratories in universities, research institutions, testing institutions, laboratories and enterprises).
Items to be cleaned
Containers: such as beakers, flasks, cylinders and test tubes
Measuring instruments: such as measuring cylinders, measuring bottles and pipettes
Petri dishes: such as petri dishes and watch dishes
Plates: such as slides and sequencing plates
Small items: such as lids, magnetic stir bars, spatulas and stoppers
Other items: such as boxes, plastic flasks and containers, metal parts, pipes and hoses, and funnels.
Specifications
Desktop Glassware Washer
Basic parameters
| Function parameters
|
Model
| NB538
| Control System
| PLC control
|
Dimensions
| 900/650/860
| Display screen
| 7 inch LCD screen
|
Inner volume
| ≥180L
| Inlet water temperature
| Up to 65°C
|
Number of cleaning layers
| 2 layers (petri dishes 3 layers)
| Static water pressure
| Max pressure 1000 kPa
|
Shell material
| SUS304
| Distribution pump
| 2 peristaltic pumps
|
Inner material
| SUS316
| Condensing device
| 1 piece
|
Structure
| Front pull-down door
| Heating system
| 220V 4KW/380V 6KW
|
Filtration system
| Four-stage filtration system
| Circulating system
| 400L/min
|
Vertical Glassware Washer
Basic parameters
| Function parameters
|
Model
| NB548
| Control System
| Siemens PLC control
|
Dimensions
| 672/660/1835
| Display screen
| 10 inch LCD display
|
Inner volume
| ≥220L
| Inlet water temperature
| Up to 65°C
|
Number of cleaning layers
| 3 layers (petri dishes 4 layers)
| Static water pressure
| Max pressure 1000 kPa
|
Shell material
| SUS304
| Distribution pump
| 2 peristaltic pumps
|
Inner material
| SUS316
| Condensing device
| 1 piece
|
Structure
| Front pull-down door
| Heating system
| 380V 9KW
|
Filtration system
| Four-stage filtration system
| Circulating system
| 500L/min
|
>>
