Product Details
Product Description
Product Description

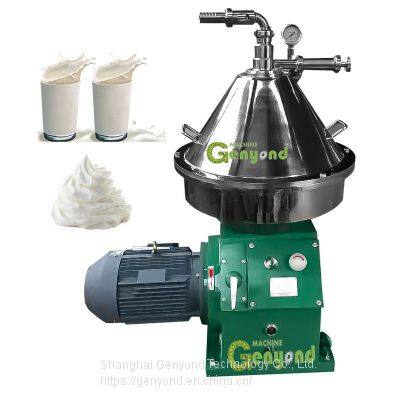

Milk cream seperation machine
Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifying operation; liquid-liquid (or liquid-liquid-solid) separation (emulsion separation), said separating operation. Disc separator with its compact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, and transportation.
Description
The Centrifugal Milk separator is important equipment for milk processing factories. Mainly used in clarifying and degreasing milk. It can also be used in the clarification and purification of similar materials.It's also widely used for liquid material separation and decontamination.
It can be manually open for check. It has an automatic driven disc. It’s equipped with a complete sophisticated system that can separate the butter (cream) from the skim milk according to the proportion difference of the substances in the milk and the temperature.
The disc separator is specially used for the two-phase and three- phase separation. The two-phase separation is to separate the suspended solid from liquid or two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time.
1. Liquid solid separation (i.e. separation of bottom concentration suspension), which is called clarification operation, that is two-phase separation.
2. Liquid-liquid separation (or liquid-liquid-solid) separation (i.e., the separation of emulsion) is called separation operation,that is three-phase separation.
Inside the drum is a set of disc-shaped parts, which are nested and folded together. There is a small gap between the discs. The suspension (or emulsion)is added to the drum by the feed pipe at the center of the drum. When the suspension (or emulsion) flows through the gap between the discs,the solid particles (or droplets) settle on the discs under the action of the centrifuge to form sediment (or liquid layer). The sediment slidesalong the surface of the disc and separates from the disc and accumulates in the place with the largest inner diameter of the drum.
The separated liquid is discharged from the outlet of the drum.
The function of the disc is to shorten the settling distance of solid particles (or droplets) and expand the settling area of the drum.
The disc installed in the drum greatly improves the production capacity of the separator. The solid accumulated in the drum shall be removed manuallyafter the separator is shut down, or discharged from the drum without shut down through the slag removal mechanism.
We have many kinds of capacities and types, such as 50L/h, 100L/h, 200L/h, 500L/h, 1000L/h, 2000L/h, 3000L/h
and 5000L/h. For all, we have both automatic and manual slag discharging types for you to choose. Also we have
both separator scan separate whey from yougert and fat from milk.
So please tell me which machine do you need before I quote to you.
Model
| GY-TZJ5B
| GY-TZJ10B
| GY-TZJ30B
| GY-TZJ50B
|
Bowl inner
| 200mm
| 300mm
| 400mm
| 475mm
|
Bowl speed
| 7546r/min
| 7320r/min
| 6500r/min
| 6022r/min
|
Product
| 500L/H
| 1000L/H
| 2000-3000L/H
| 5000L/H
|
Separate factor
| 8120
| 8985
| 9120
| 9250
|
Fat output
| Centripetal pump
| Centripetal pump
| Centripetal pump
| Centripetal pump
|
Skim milk output
| Centripetal pump
| Centripetal pump
| Centripetal pump
| Centripetal pump
|
Sludge
| PLC
| PLC
| PLC
| PLC
|
Power
| 380v/1.5kw
| 380V/4kw
| 380v/7.5kw
| 380v/7.5kw
|
Temperature
| 35-55 ℃
| 35-55 ℃
| 35-55 ℃
| 35-55 ℃
|
Fat in skim milk
| 0.03-0.08%
| 0.015-0.05%
| 0.015-0.04%
| 0.015-0.04%
|
Weight
| 120kg
| 500kg
| 680kg
| 1100kg
|
Dimension
| 700*550*800mm
| 850*850*1200mm
| 1100*650*1550
| 1100*700*1600
|
(We have full-automatic milk separator machine.semi-automatic separator machine ,many kinds and models you can choose.)
