35ton Capacity, Stable Performance, 220kw Siemens Motor Wood Chipper Bx2113

Product Description

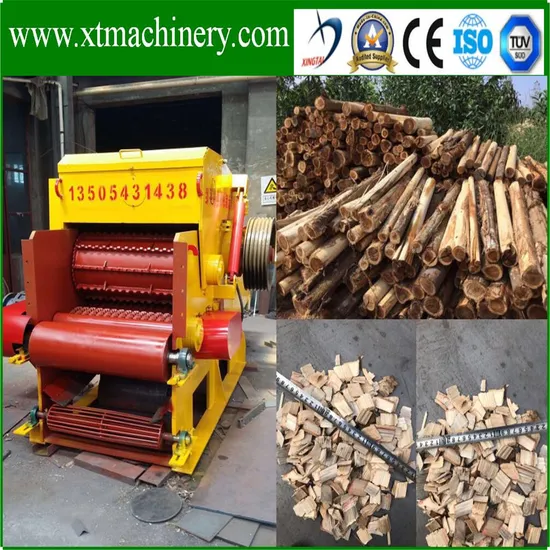

Hot Selling Professional Wood Drum Chipper


A tree chipper or wood chipper is a machine used for reducing wood (tree trunks or limbs) into small parts, like wood chips or sawdust.

A Drum chipper is typically made of a hopper, up and down roller, rollers with blades, hydraulic system and an output system, which is normally a belt conveyor. The hopper servers as a safety mechanism to keep human body away from the chipping blades. Wood chippers are normally removable, and being mounted or welded on a frame with wheels, which can be towed by a truck.

Final products high quality chips with even length and uniform thickness can be used for chipboard industry, paper and pulp industry, sawmills and veneer industry and biomass plants.

Model	BX215	BX216	BX-G316	BX218	BX-G318	BX2113
Knife Roll Diameter mm	500	650	650	800	800	1300
Blades	2	2	4	2	4	3*2
Feed Port Size mm	170*400	240*540	240*540	270*680	270*680	380*700
Roll Speed (r/min)	595	592	650	650	680	520
Max. Working Material Diameter mm	150	200	180	250	250	350
Chips Length mm	25	25	15	30	20	40
Capactiy m3/h	6	12	15	22	25	60
Power kw	45	55	55	110	110-132	220
Assist Power kw	7.4	9.2	9.2	12.5	12.5	17
Weight kg	3,100	4,420	4,580	7,220	7,460	11,850
Dimension mm (L*W*H)	1800*1800*1150	2300*2400*1250	2300*2400*1250	2400*2580*1500	2450*2580*1650	3680*2450*2050

Before order the drum wood chipper, please kindly inform us belw information.

1. please tell us your expection on production capacity, (kgs/h, or CBM/h).
2. what are the diameter range of your raw materials, (mm) ?
3. what is your required size of final wood chiper, (length / width / thickness) ? or please tell us your usage of final wood chips, for paper plant, power plant, fuel pellet & briquette making line.
4. if your raw material also include branch, board, waste furnature, small wood block, and wood barks, please kindly tell us, we will give you the best suggestion.
All The Machine from XT Machinery will enjoy two years Warranty.
XT Machinery, Works For You!

---
