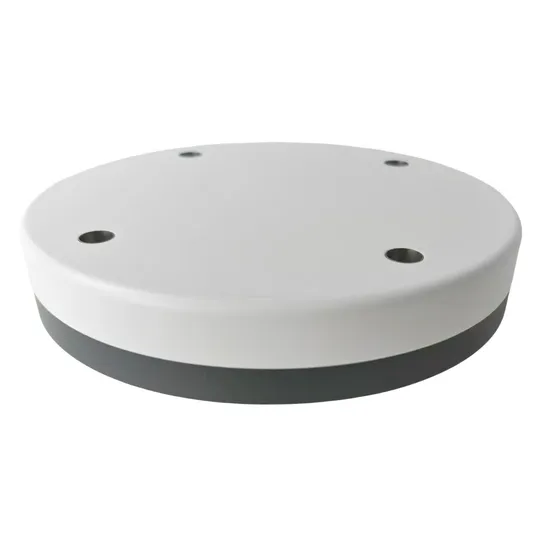

7-Element B3-Anti-Interference Antenna 7 Channel B3, 1 Channel B1/GPS/Glonass Anti-Jamming Antenna

Product Description

7-Element B3-Anti-Interference Antenna 7 Channel B3, 1 Channel B1/GPS/Glonass Anti-Jamming Antenna Product Description
The 7-Element Anti-Interference Antenna is a specialized antenna with seven radiating elements designed to mitigate various interference signals.
Element Count: The antenna features seven radiating elements, indicating a more complex structure and design for enhanced signal processing and performance optimization. Anti-Interference Capability: It is specifically designed to counteract different types of interference signals, including those from other wireless devices, electromagnetic interference, or noise interference. Signal Processing: The antenna may be equipped with advanced signal processing techniques such as beamforming or diversity reception to improve anti-interference performance and signal quality. Directional Performance: It may have directional characteristics, allowing it to selectively receive or transmit signals from specific directions and reduce the impact of external interference. Multi-Element Design: The multi-element design contributes to increased gain, directionality, and anti-interference capabilities, making it perform well in complex wireless environments. Applications: It is suitable for various wireless communication systems such as Wi-Fi networks, mobile communication base stations, radar systems, especially in scenarios requiring high reliability and anti-interference performance. In summary, the 7-Element Anti-Interference Antenna is designed to combat a wide range of interference signals, featuring a multi-element design and advanced signal processing techniques for use in diverse wireless communication and radar systems.
Function 1. Channel 1 and channel 7 receive BD2-B3 satellite navigation signals, and realize the anti-jamming function of the frequency point signals; 2. Receive and amplify B1/GPS/GLONASS navigation signals with low noise, and synthesize shunt output with radio frequency signals of BD2-B3 after anti-interference; 3. Straight-through, anti-interference function switch; 4, With self-detection function; 5. Online software upgrade.
Application
Applicable to airborne, vehicle-mounted, shipborne, ground systems and other application platforms.
Main technical parameters

Received signal	BD2-B3, B1/GPS/GLONASS	Size (mm)	External dimension: 230*40
Number of channels	7 channel B3, 1 channel B1/GPS/GLONASS		Installation size :180*180
Anti-interference performance	Single broadband interference ≥95dB; Broadband interference ≥80dB	Physical interface	Low frequency connector: J599/20MTAC35PN
			Rf connector: TNC-KFD6
Channel gain (dB)	40±2	Weight (kg)	2.6±0.05
Output signal power (dBm)	-65±5	Operating temperature (ºC)	- 40 ~ 85
Power supply (V)	DC28	Storage temperature (ºC)	-55 ~ 85
Power consumption (W)	20.5±0.5	Vibration, shock, electromagnetic compatibility, etc	Meet the relevant requirements of GJB
