Top Quality One Speed CD1 Wire Rope Electric Hoist

Product Description

Product Description
Electric wire rope hoist description:
CD1, MD1 type electric electric hoist with wire rope hold the characteristic as compact structure, light dead weight and easy operation. It can be installed on I-steel or working together with single beam crane, double beam crane, jib crane, bridge crane, gantry crane, arm cranes ,cantilever cranes and so on. It can also be used as a winch. CD1 type is single-speed while MD1 type has dual speed. The fast speed is for lifting, low speed can do precise loading and unloading, mounding of sand box, maintenance of machine tools etc.
Model CD MD Wire Rope Electric Hoist is a small-size lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, it can also be used as a winch. It can be widely used in factories, harbors, warehouses and shops, and can improve working efficiency and conditions a lot.
Model CD Electric Hoist has only one normal speed, which can satisfy normal application. Model MD Electric Hoist provides two speeds:normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.Thus, model MD Electric Hoist is used more widely than Model CD one.
ELectric wire rope hoist features:
1. Shell: light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design2. Design: International advanced tide compact and nice.3. Reduce: High strength hard gear surface, inclined gear driving with low noise.4. Motor: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer, suit higher classification.5. Limit Switch: Can limit model operate safety.6. Hook: Made of high-class alloy steel, it has high strength and high security; by using new design, weight will never escape.
Product Parameters

Model	Lift Capacity (t)	Lift Height (m)	Lift Speed (m/min)	Travelling Speed (m/min)	Rope Reeving	Wire Rope Diameter (mm)	Work Duty
CD1-0.5	0.5	6/9/12/18/24/30	8	20	2/1	5.1	M3
CD1-1	1	6/9/12/18/24/30	8	20	2/1	7.6	M3
CD1-2	2	6/9/12/18/24/30	8	20	2/1	11	M3
CD1-3	3	6/9/12/18/24/30	8	20	2/1	13	M3
CD1-5	5	6/9/12/18/24/30	8	20	2/1	15	M3
CD1-10	10	6/9/12/18/24/30	7	20	4/1	15	M3
CD1-16	16	6/9/12/18/24/30	3.5	20	4/1	17.5	M3

Packaging & Shipping

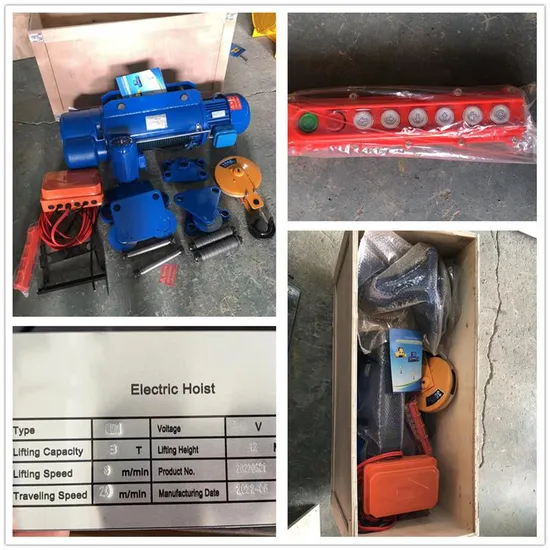

Packing: Packed bubble film first, then put in to the wooden case or packed with the steel pallet.
Delivery: Land transportation, sea shipping, air transportation.
Product Application
CD1, MD1 type electric wire rope hoist can be installed in single beam crane, bridge crane, gantry crane and so on. CD1 type is single-speed while MD1 type has dual speed. The fast speed is for lifting, low speed can do precise loading and unloading, mounding ofsand box, maintenance of machine tools etc.
About Us
Our factory can produce 1-50 tons of wire rope electric hoist, including CD and MD type,low headroom hoist,HC type large weight and high working level,HHBD explosion proof type , European electric hoist and Chain hoist. The CD and MD type wire rope electric hoist is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes ,cantilever cranes, etc. It can also be used as a winch.It is widely used in factories,mines,harbors,warehouses,cargo storage areas and shops.CD has one speed,MD has two speed. FAQ
Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.

---
