RF Superfine Calcium Carbonate, Talc, Quartz Powder Grinding Jet Mill

Product Description

RFQM SERIES FLUIDIZED-BED JET MILL Introduction
RFQLM series fluidized-bed jet mill is a jet mill independently researched, developed and optimized by Yingkou Ruifeng Powder Equipment Co., Ltd. based on years of experiences and knowledge of aerodynamics and hydrodynamics, as well as the problems encountered in actual production process. This mill has rational functional configuration, with high output, and is widely applied in processing ultrafine nonmetallic powder including talc, brucite and calcite, and the fineness of finished powder falls between 1~30um

RFQLM Series Fluidized-bed Jet Mill
Model	Particle size D97:μm	Grinding air flow m3/min	Air pressure Mpa	Classification power KW
QLM700	6-100	20-30	0.6-1.0	15/18.5
QLM800	8-100	40-50	0.6-1.0	22/30
QLM900	8-100	60-70	0.6-1.0	30/37
QLM1000	10-100	80-90	0.6-1.0	37/45
QLM1200	10-100	120-140	0.6-1.0	55/75

Fit for material
This machine is widely used for processing non-metal ores including tale, magnesite, barite, magnesium hydroxide, and lithium ire phosphate, as well as electronic materials, chemicals, new materials, abrasives, fireproofing material, rare earth, ceramics, metal pov toner, pesticides, and medicine.

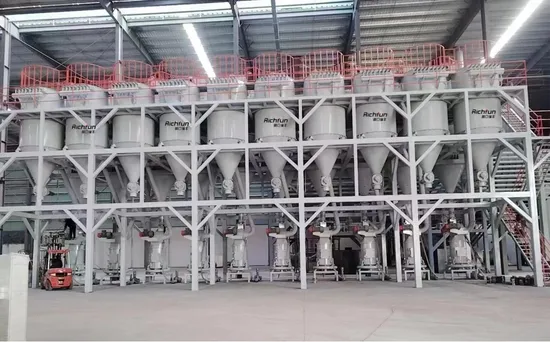

Project pictures
Finished powder sample
Our Advantages
Δ Classifiers adopting new technology and special design. reducing the energy consumption
Δ Supersonice nozzle
Δ Independent structure classifier design
Δ PLC automatic control
Δ Low wear
Δ Environment friendly

Mill Working Flow
After Sales Service
By summarizing years of production experience and customer's field feedback, our company has established a complete and effective service system and has bult an experienced service team for providing our users with technical guidance on powder production, as well as on-site equipment installation and commissioning services, and field operation guidance.
