Concrete Mixer, Mini Loader Mixer Bucket, Skid Steer Concrete Buckets

Product Description

Product Description

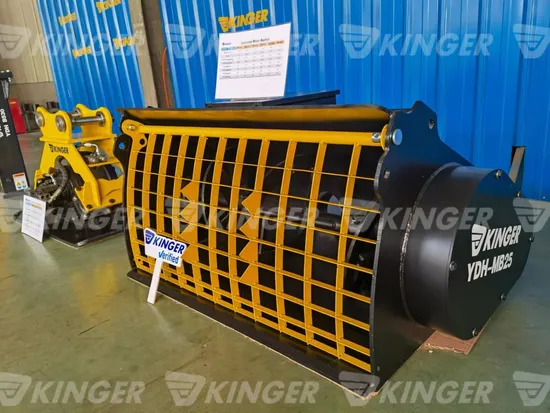

We have 7 models concrete mixer bucket which can meet different capacity requirements you need, from 150L volume to 500L, its hydraulic cylinder can open and close, the compass hatch located in the middle of the bucket ,screwdriver, grille and a flexible tube for drainage.

Detailed Photos
Product Parameters

Model	YDH-MB15	YDH-MB20	YDH-MB25	YDH-MB30	YDH-MB35	YDH-MB45	YDH-MB50
Rated Capacity(L)	150	200	250	300	350	450	500
Max Capacity(L)	200	240	290	340	390	500	550
Drive	Chain	Chain	Chain	Chain	Chain	Chain	Chain
Oil Pressure Range(Bar)	60-200	60-200	60-200	60-200	60-200	60-240	60-240
Oil Flow Range(Lpm)	40-80	40-80	40-90	40-90	40-90	50-120	50-120
Unit Width(mm)	780	640	710	710	710	930	930
Unit Height(mm)	710	800	890	890	890	900	900
Unit Length(mm)	1100	1300	1300	1460	1650	1860	2000
Unit Weight(KG)	350	390	470	480	535	690	720
