| Negotiable | 3 Sets (MOQ) |

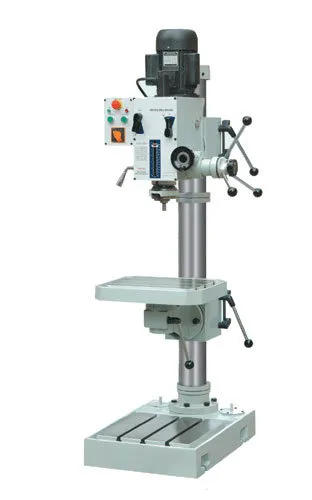

| MODEL | KYZ40 | KYZ45 |
Drilling capacity | 40mm | 45mm |
Distance from spindle nose to table | 725mm | 725mm |
Min. Distance from spindle axis to column | 283mm | 283mm |
Distance from spindle nose to base | 1125mm | 1125mm |
Spindle travel | 130mm | 130mm |
Spindle taper | M. T. 4 or R8 | M. T. 4 or R8 |
Step of spindle | 6 | 6 |
Range of spindle speed 50Hz | 80-1250r. P. M. | 80-1250r. P. M. |
60Hz | 100-1500r. P. M. | 100-1500r. P. M. |
Swivel angle of table horizontally | 360degree | 360degree |
Swivel angle of headstock (horizontally) | 360degree | 360degree |
(perpendicularly) | 90degree | 90degree |
Table leaned | 45degree | 45degree |
Available size of table | 380*306mm | 380*306mm |
Available size on base | 418*415mm | 418*415mm |
Max. Travel of headstock | 250mm | 250mm |
Max. Travel of table bracket | 600mm | 600mm |
Motor Power | 1.1Kw(1.5Hp) | 1.5Kw(2Hp) |
| As customer's requirement | ||
Overall height | 1680mm | 1680mm |
Net weight | 430kg | 435kg |
Gross weight | 480kg | 485kg |
Packing size | 800x650x1830mm | 800x650x1830mm |
