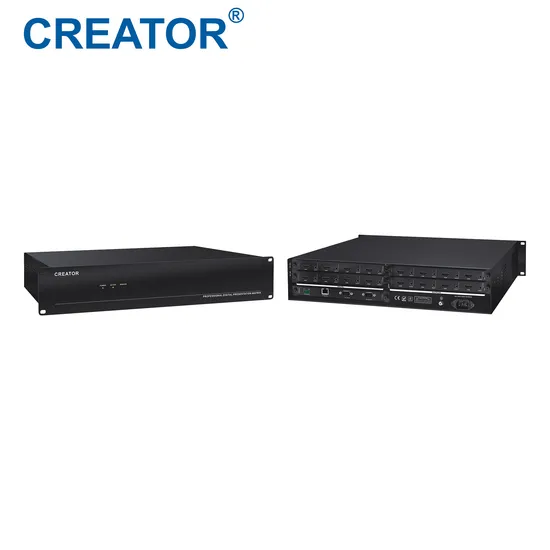

Modular Hybrid Video Processor Windows Scaling/Overlapping/Roaming Video Wall Processor

Product Description

Product Overview
PRO-MAX series hybrid splicing matrix switchers are a group of seamless switchers which can cross-switch and splice multiple types of signals. High-performance hardware design ensures it supports for various high definition digital and analog signals, bi-directional RS-232 and IR control signal management. They can splice one input graphic signal into multiple channels and disperse to different display units to form a complete large-scale frame. This can provide one-stop solution for mulitiple types of visual signals and control signals switching and processing in various industries, especially for Broadcasting and Television Projects, Multimedia Meeting Rooms, Big Display Projects, TV Education, Smart Traffic Management Centers, and Command Center, etc.

Features
· All digital switching: real seamless switching for all types of output cards.
· All splicing cards support video signal splicing and assembling; supports graphic windows scaling, overlapping, and roaming over the whole graphic frame.
· The preview card supports video signal preview and switching function.
· Support DVI 1.0 protocol, and compatible with HDCP 1.3 and HDMI 1.3a standards.
· Support hot-swap, video and audio signal synchronized switching, and AUTO DELAY for audio signal.
· Support EDID read and PC Management Software.
· Support built-in and local bi-directional RS232 and IR control signal with HDBaseT inputs and outputs; Support control signals and video/audio · synchronized and separate switching; Support POE function.
· Versatile management methods: IR Remote Control, RS485, RS232 and network Control, and serial port control at remote end via H-CAT inputs and outputs. This brings great convenience for the users to integrate the signal management and control with various other equipments at the remote end.
· Support firmware online upgrade.
· Intelligent control the operation of fan in matrix.
· SDI input can achieve looping out.
· Plug-in design for cards, the input and output signal type and signal channel amount can be allocated flexibly.

Specifications
System Diagram

Case Study
Gambia International Convention Center
Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.
United Nations Conference on Trade and Development
Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.
Brazil Federation of Industries of Sao Paolo (FIESP)
Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.
