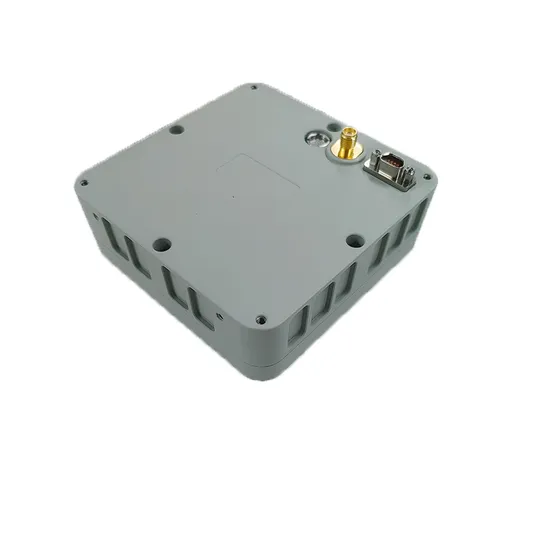

Single Four-Element B3 Gnss Positioning Anti-Interference All-in-One Unit for Drone Applications

Product Description

Shenzhen fengrun intelligent technology co., ltd Our company is located in Shenzhen, China, and was founded in 2008. We are engaged in the research of various signal interference, signal amplification and signal protection equipment., and has a professional team. From circuit boards to finished products, it is completed by our company. It is a manufacturer of anti-signal equipment and signal amplification equipment with a mature system. With professional R&D, standardized manufacturing process and experienced technical support, we can fully guarantee the excellent product quality and on-time delivery to our customers.Through continuous innovation and hard work, our company has accumulated a wealth of experience in telecommunication products and launched many products with industry leading level. Currently, we have clients in more than 60 countries across the world. Our products are especially popular in India, Russia, Nigeria, Italy, France and South American countries.Better signal, better life.
Application Areas * Dismounted Soldier * Fixed/Rotary Wing Aircraft * GNSS Guided Missiles * Unmanned Autonomous Systems * Armored Land Vehicles * Small Naval and Coast Guard Platforms * Maritime EW Protection * Critical Infrastructure EW Protection * Advanced Transportation Systems * Important Communications

item	value
Model Number	FRGBP
Type	GPS/GNSS Antenna
Brand Name	FR
Place of Origin	China
Array element	4B1L1E1+L2 (optional, none by default)
Isolation between same frequency units	≤-15dB
Antenna gain (max)	2dBic
Out-of-band suppression	@50M≥60dB
Working voltage	DC 9-32V (antenna low noise amplifier: 3.3-12V)
Working current per channel	<120mA (antenna elements <100mA)
Power consumption	< 7W
Overall machine size	L100*W100*H32mm (excluding connectors and tolerances)
Weight	<380g
Interface	SMA-K(RF signal), J30J-9ZK socket (power supply+control signal)

---
